Fumeclear XL-700 Filter Set

$79.00

Fumeclear XL-700 Filter Set

$79.00
Style: Stainless steel fire protection network

Fumeclear XL-700 Filter Set element change cycle

Fumeclear XL-700 Filter Set system consists of:

Our product package incorporates 8 filters

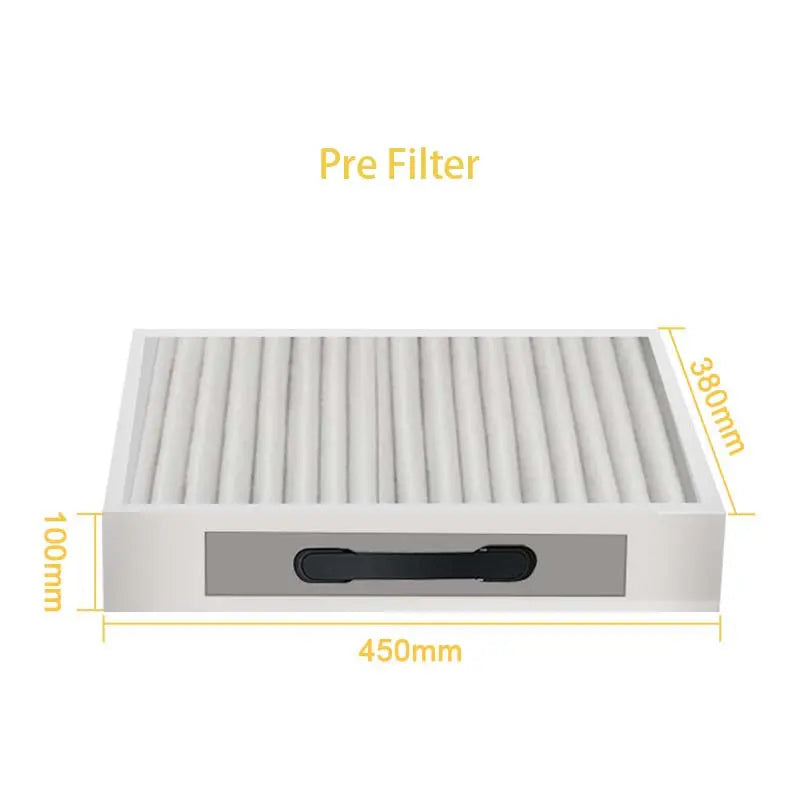

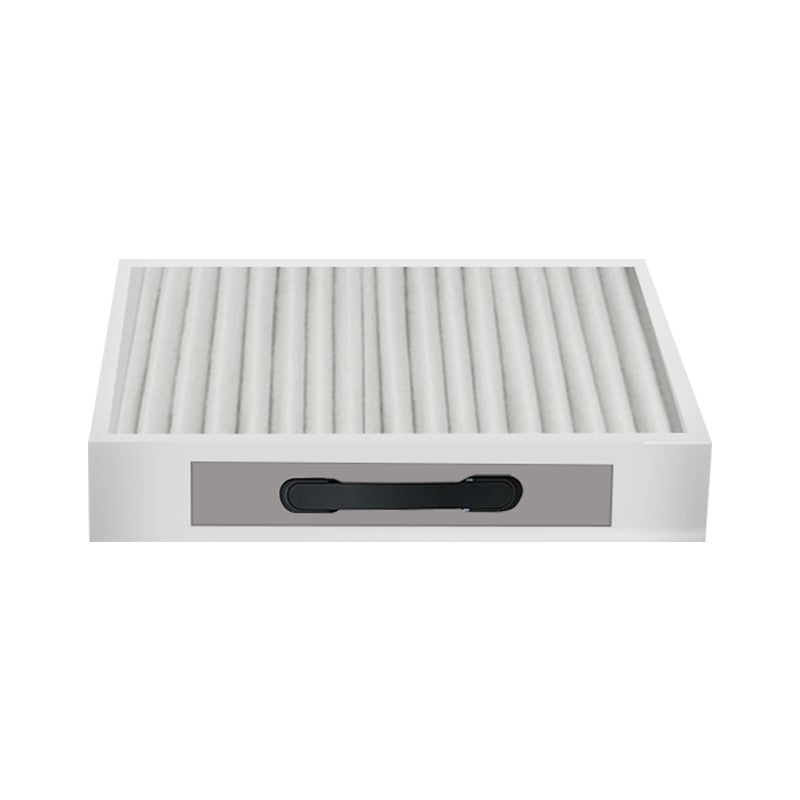

  •  Fumeclear XL-700 First Prefilter *1 【450*380*100mm】

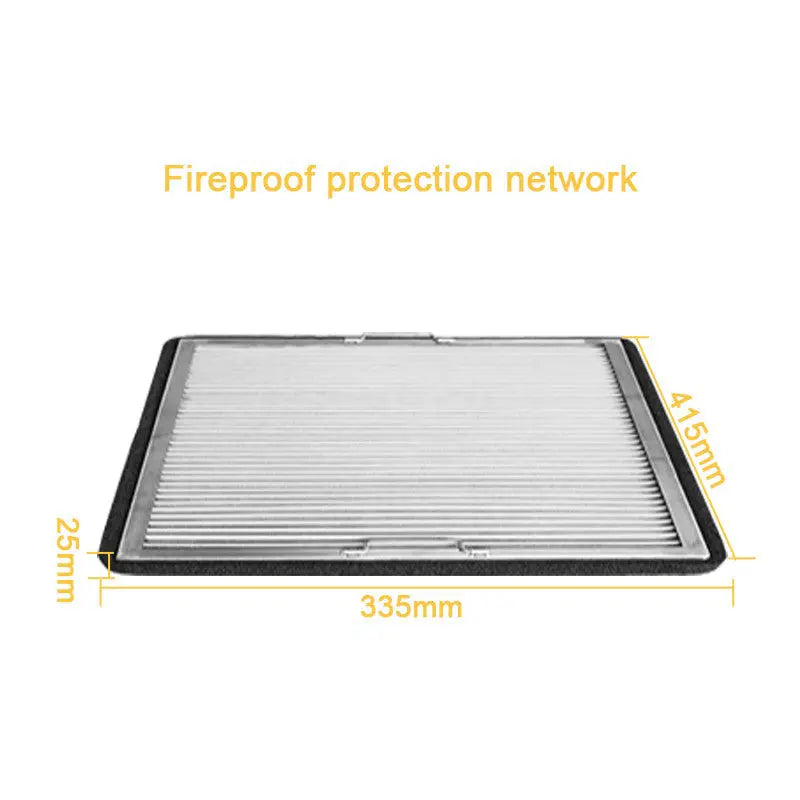

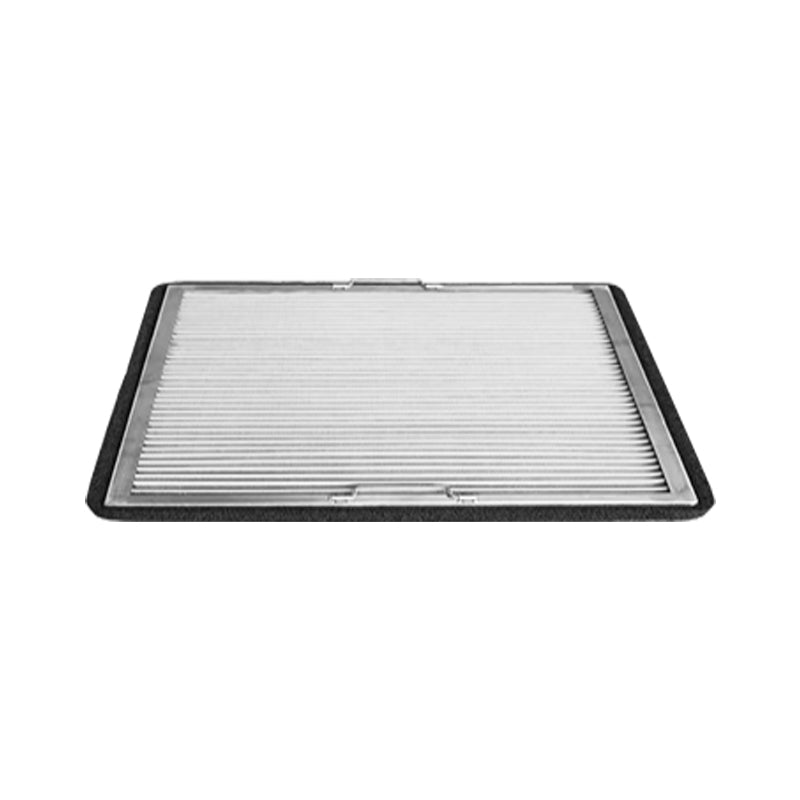

  • Fumeclear XL-700 Stainless steel fire protection network*1 【425*335*25mm】

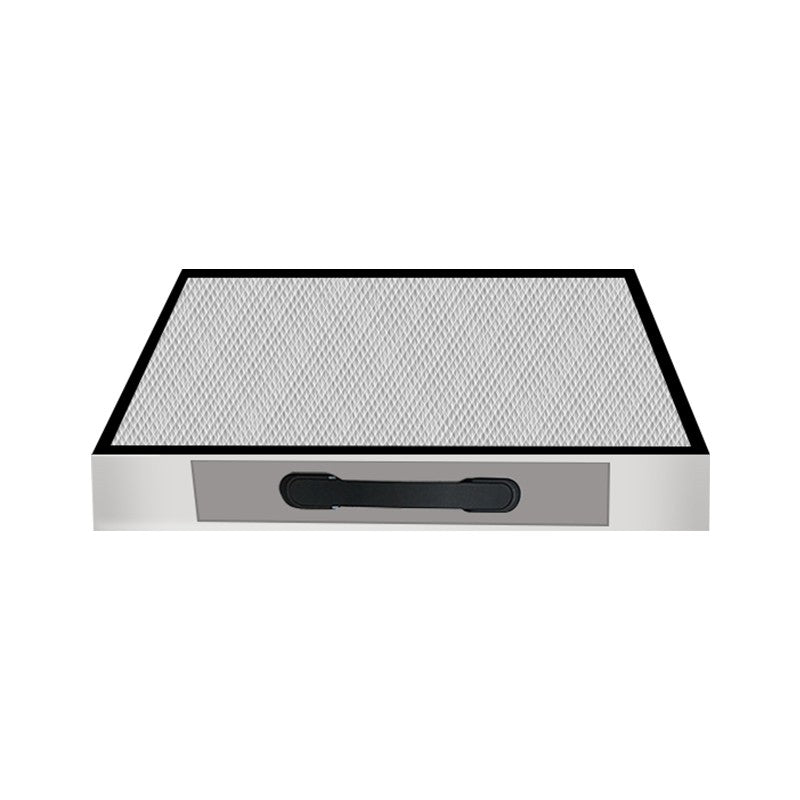

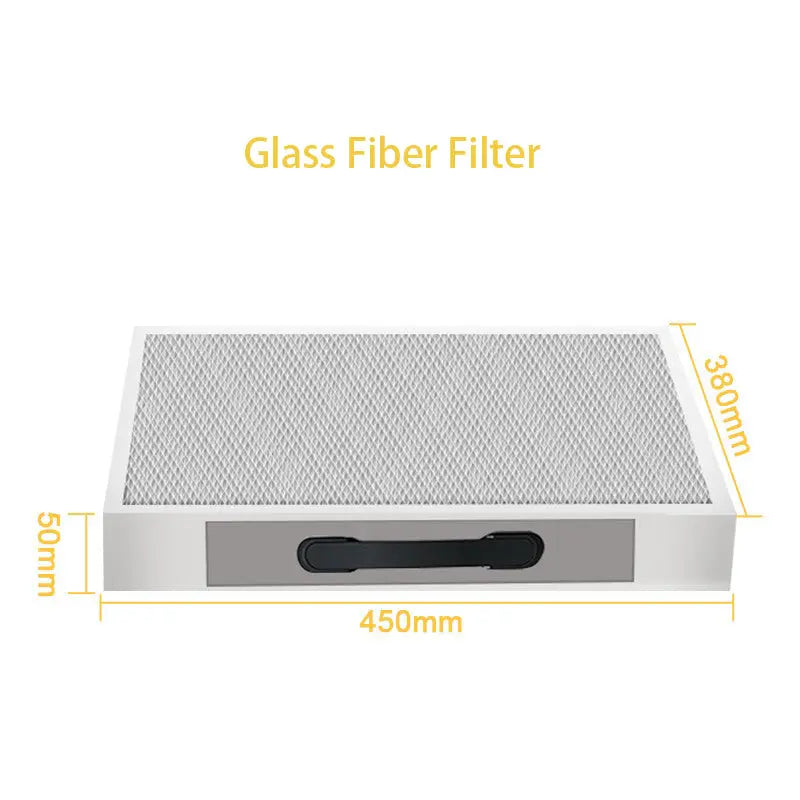

  • Fumeclear XL-700 Glass fiber high efficiency filter core *1 【450*380*50mm】

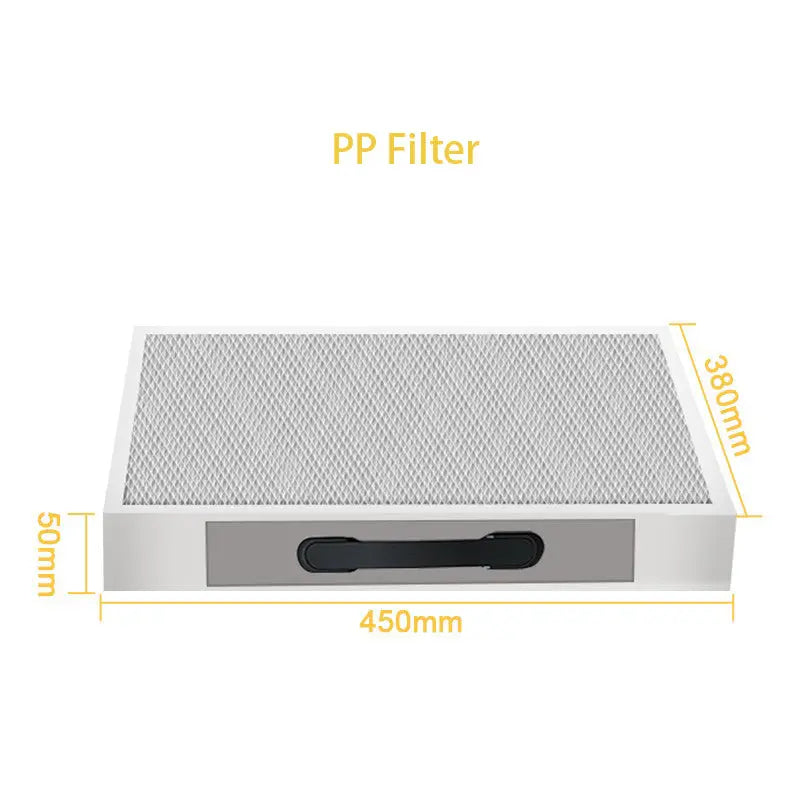

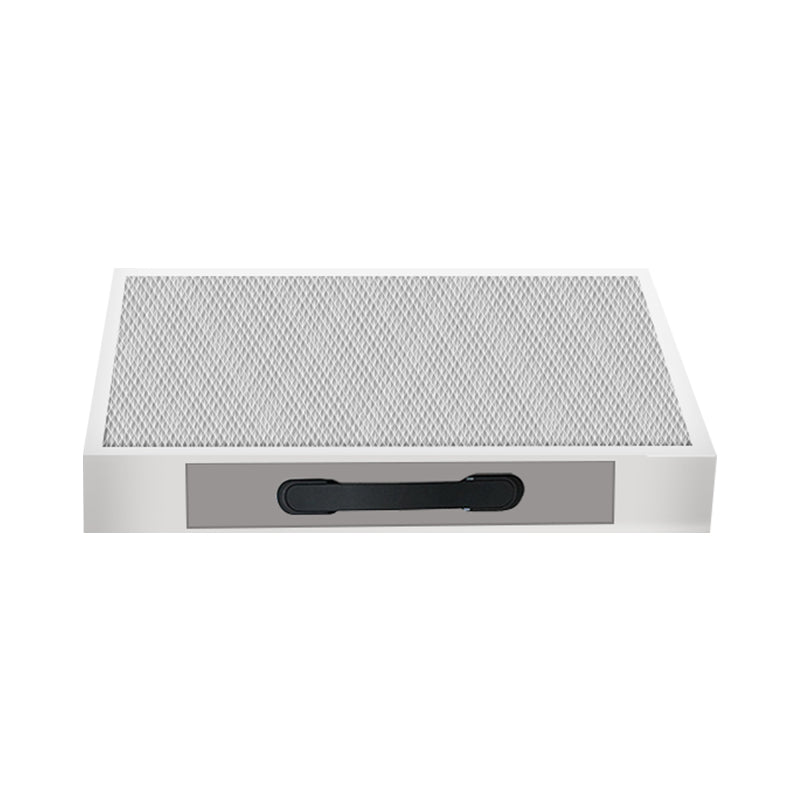

  • Fumeclear XL-700 PP high efficiency filter core *1 【450*380*50】

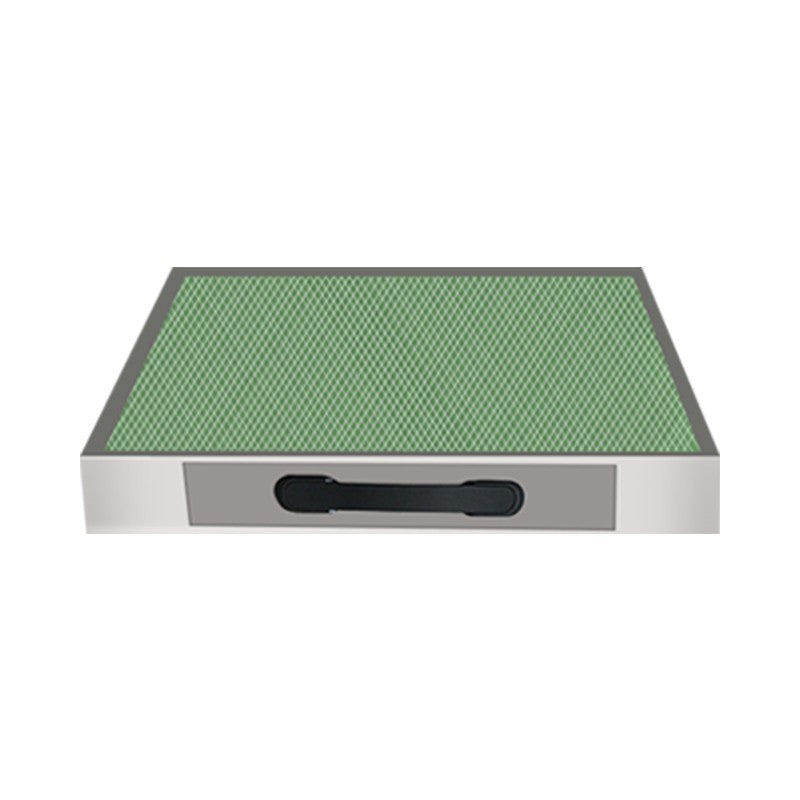

  • Fumeclear XL-700 Activated carbon filter core *1【450*380*50】

Fumeclear XL-700 Filter Use & Maintenance :

Filter cartridge installation instructions

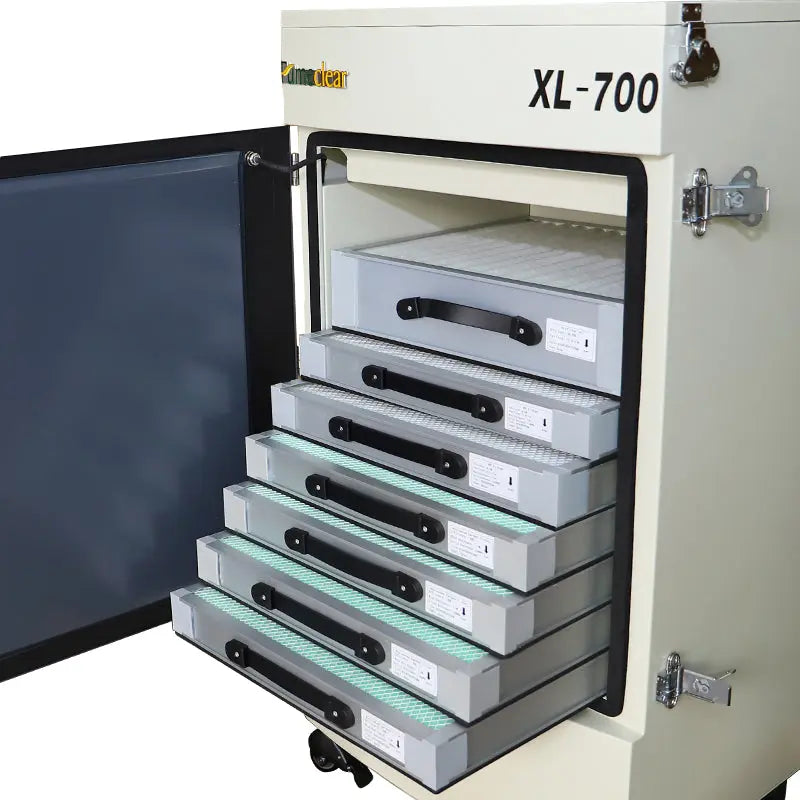

Fumeclear XL-700  Filter Set Instructions for Operation:

1. Rotate the two butterfly knobs located on the sides of the unit counter-clockwise to unlock and open the chassis door.

2. Turn the twin butterfly knobs located on the right side of the unit counter-clockwise, and proceed to open the front door of the chassis.

3. Initiate the process beginning with the uppermost layer. Hold onto the handle and carefully slide out each filter component individually.

4. Once a specific filter component is replaced, gently place it back in its original position from top to bottom, maintaining the correct order.

Note: This appliance utilizes interchangeable filter components. It is essential to replace the filter component as soon as it reaches saturation point, ensuring effective purification capabilities are maintained.

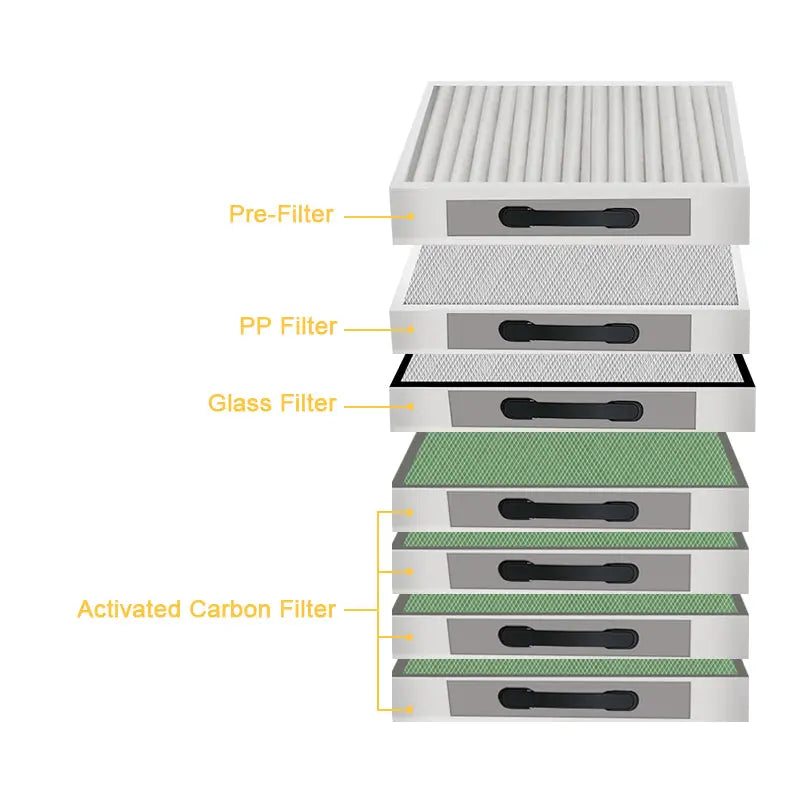

XL-700 complete filter set includes:

1.Stainless steel fire protection network(One piece)

2.First Prefilter (One piece)

3.Pp high efficiency filter core (One piece)

4.Glass fiber high efficiency filter core One piece)

5.Activated carbon filter core(four pairs)

A total of eight items were actually received
