Industrial Laser Fume Extractor System – 265 CFM, Quiet, Long-Lasting Filters, Remote Control

$1,099.99 USD $1,299.99

Built for demanding laser and VOC-heavy applications with 5-stage filtration, triple activated carbon and long-term replacement filter support.

265 CFM 450 m³/h airflow

5-Stage particle + gas filtration

3× Carbon extended VOC capacity

Filters Stocked long-term replacements

Visa Mastercard Shop Pay PayPal Klarna secure payment methods

Local Stock

US / UK / EU

1-Year Warranty

After-sales support

Replacement Filters

Available long-term

Technical Support

Fume extraction specialists

Recommended Applications

• Laser Engraving & Cutting
• Laser Welding
• 3D Printing (Resin / FDM)
• Dental & Laboratory Work
• VOC & Odor-Generating Processes

Includes a 100 mm × 3 m extraction hose and 100 mm × 5 m external exhaust hose. Custom hose sizes and lengths are available — Contact Us →

Shop XL-300 Filters & Accessories →

Not sure if XL-300 is right for your setup?

Tell us your application, laser wattage and material. We'll help you choose the right extractor.

Get a Free Recommendation →

Switch language and currency before ordering (Desktop: top right; Mobile: top-left menu).
Voltage (110V/220V) and plug type are matched to your shipping country.

Processing Time: 1-2 business days.
Shipping Methods: Standard and expedited shipping available.
Shipping Locations: U.S. and international.
Shipping Rates: Vary depending on location, order size, and shipping method.
Order Tracking: Tracking number provided after shipment.
Customs & Duties: Customer responsible for import taxes.

For more details, please visit our full shipping policy. View Shipping Policy

Eligibility: 30-day return for unused items.
Return Process: Contact support with order details.
Refund Method: Original payment after inspection.
Non-Refundable: Used or damaged items not eligible.

For more details, please refer to our refund policy. View Refund Policy

Who We Are: 20+ years fume extraction manufacturer.
Applications: Soldering, laser, 3D printing, salons, industry.
Mission: Clean and safe working environments.
Global Service: Warehouses in U.S., U.K., Germany.

Learn more on our About Us page. About Us

See the XL-300 in Action

Watch real airflow, fume capture and operating performance before you choose.

265 CFM Airflow Real Fume Capture Operating Performance

Not All Fume Extraction Systems Are Configured the Same

Similar-looking fume extraction systems can use different filter configurations, hose setups and after-sales support. FumeClear's XL-300 is built around 5-stage filtration, triple activated carbon and long-term replacement filter availability.

What Makes the FumeClear XL-300 Different

Similar-looking systems can vary significantly in filtration depth, exhaust setup, replacement filter availability and after-sales support.

Feature

Typical Configuration

FumeClear XL-300

Airflow

Varies by system

265 CFM / 450 m³/h

Particle Filtration

Standard fine filter

H13-grade glass fiber

Activated Carbon

Varies by configuration

3 activated carbon stages

Total Filtration

Often 3–4 stages

5-stage filtration

External Exhaust

Not always included

100 mm × 5 m hose included

Replacement Filters

Availability varies

Dedicated replacements stocked

Local Inventory

Varies by seller

US / UK / EU stock

Product Support

General seller support

Fume extraction specialists

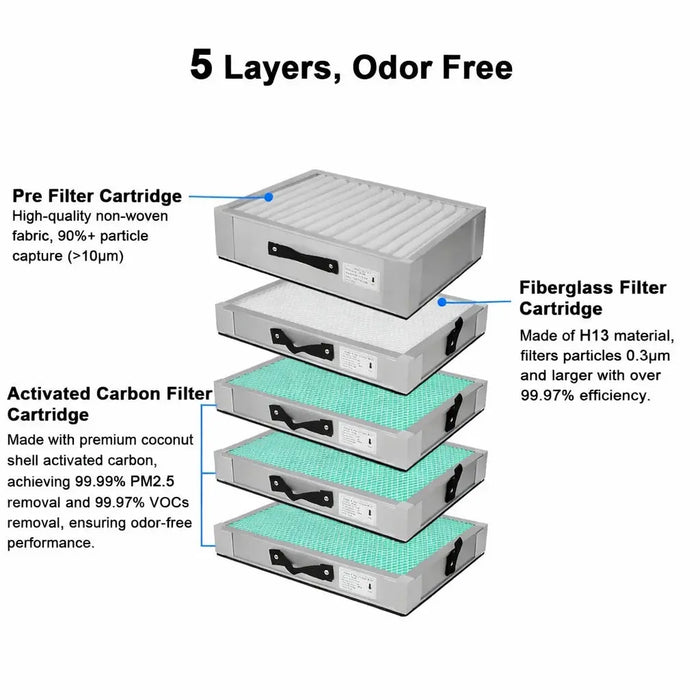

5-Stage Filtration. Triple Activated Carbon.

5-Stage System

100mm Pre-filter + 50mm H13-grade glass fiber + 3 50mm activated carbon stages work together to capture particles, smoke, odors and VOCs.

View Full Filter Set
100MM Pre-Filter

Captures larger particles and debris first, helping reduce load on the downstream filters.

Shop Replacement Filters
50MM HEPA Filter

Fine-particle filtration for smoke and smaller airborne contaminants before the air reaches the carbon stages.

Shop Replacement Filters

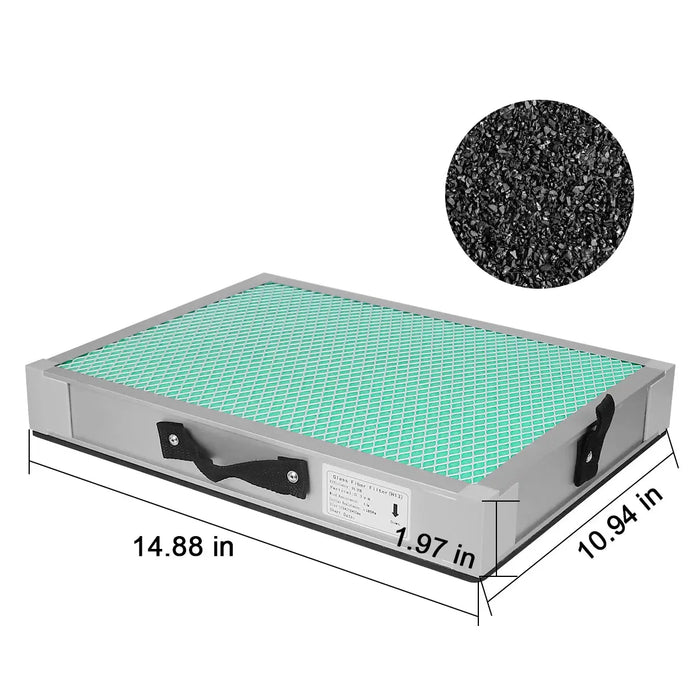

Triple Activated Carbon

3 activated carbon stages provide more adsorption capacity for odors and VOCs before the carbon reaches saturation.

Shop Replacement Filters

Know Your Filter Costs Before You Buy

XL-300 replacement filters are available separately and as a full set, so you can plan maintenance costs before purchase instead of guessing later.

Typical replacement intervals vary by material, workload and fume concentration.
Pre-filter: typically 1–3 months
Fine filter: typically 3–4 months
Carbon stages: typically 4-6 months,replace based on odor/VOC breakthrough and operating conditions

Buy XL-300 Filters Separately

Certifications & Approvals

The XL-300 is built for professional environments that demand reliable fume extraction performance and safe operation. With powerful suction, advanced filtration, stable performance, and intuitive touch controls, it meets strict quality and safety standards and is certified with CE, RoHS, FCC, and UKCA certifications to support compliant workplace operations.

Step 1

Slide the clamp onto the hose, connect the 9.84 ft hose to the inlet and the 16.4 ft hose to the outlet, then tighten with a screwdriver.
Step 2:

Plug in the power cord and
flip the power switch on.
Step 3:

You can start the XL-300 Fume Extractor either by pressing the start button manually or by using the start button on the remote control.

Versatile Fume Extraction for High-VOC Workspaces

From laser engraving and cutting to laser welding, resin 3D printing, and chemical fume control, the XL-300 is designed for workshops that require reliable removal of high concentrations of smoke, odors, and VOCs. Whether used in maker spaces, fabrication studios, dental labs, or professional workshops, it provides powerful filtration performance to help maintain a cleaner and safer working environment across a wide range of applications.

Workshop Air Quality Matters

Poor air quality in workshops can become a hidden health risk. Long-term exposure to smoke, fine particles, VOCs, and chemical fumes generated during manufacturing and fabrication processes may affect workers’ respiratory health, comfort, and overall well-being.

A professional fume extractor helps capture harmful contaminants at the source before they spread throughout the workspace, reducing airborne pollutants and creating a cleaner, safer environment. For workshops with continuous operations, effective fume extraction is not just an equipment upgrade — it is an essential part of workplace safety.

Product Specifications

Filter Stages	1 × Pre-Filter Cartridge, 1 × Glass Fiber Filter Core, and 3 × Activated Carbon Filter Cores
Flow	265 CFM
Fumeclear Power	330 W
Noise	< 59dB
Air Inlet Interface	Air Inlet Hose: Φ100 mm × 3 m ; Air Outlet Hose: Φ100 mm × 5 m
Dimensions (L×W×H)	16.73" x 12.4" x 27.56"
Weight	80.96 lbs

Fumeclear-xl-300-laser-fume-extractor-package-list

Inside the Package

XL-300 Unit × 1
Filter Set × 1
Air Inlet Hose + Air Outlet Hose × 1
Hose Clamps × 2
Power Cord × 1
Remote Control × 1
User Manual × 1

5 stars: 7 (88%)
4 stars: 1 (13%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

The XL-300 was exactly what I was looking for

The XL-300 was exactly what I was looking for. It works great and handles smoke like a champ. It's pretty quiet in my garage and pulls tons of air. I use it with my 80W laser, and can even cut with the garage door closed. The only thing I wish it could do is take out the smell of the wood and acrylic. But I bet that's a pretty tall ask. I'm very satisfied with this machine!

The XL-300 is awesome

The XL-300 is awesome. I use it with a Aeon Mira 7 when cutting acrylic, wood and eva foam and it traps all the smoke and fumes. IT is also strong enough to pull all the fumes and particles when using my Monport 20 watt fiber laser. I really like how easy it is to change the filters and the fact that I just need to change a single filter at a time, no need to replace the entire set each time. The variable speed control is also a nice feature. I was reluctant to spend money on a "real" fume extractor like the FumeClear, but I'm happy I did rather than compromise on one of the underpowered units sold for a couple hunder bucks on Amazon.

Great Filtration Unit

I have been using the XL300 with my CNC laser setup for the past year. I originally started with the ducting on the back side of the laser which actually had enough power to extract the fumes and off-gasses from the laser. However, as I have expanded to bigger projects and the gantry was moving more I decided to build an enclosure with the exhaust evacuated at the top and back. This allowed for me to run the XL-300 at half speed. I can note that with the system operating I definitely cannot smell any fumes while the machine is running which is great! I highly recommend this unit.

The unit operates extremely quietly which is great. It is so quite I often forget to shut the system machine off after I have had a production run.

The unit is nice and compact which doesn't take up too much area in my shop which is a bonus.

The only down side from this was that when I received the machine, one of the casters was missing so it has a slight lean to it. I do not believe this was the fault of the manufacturer but more of the shipping as the box was a little beat up and there was a hole in the bottom corner when I received it.

Filter is very easy to use and surprisingly quiet

Filter is very easy to use and surprisingly quiet. Would recommend to anyone!

Great machine

This machine is quieter than expected. It provides really good suction, it compares the another unit I have that cost twice the money. I'd recommend it to anyone who is looking for one.

Does the job my room does not smell like monomer like before. No more headaches.

I love this fume, dust, and aerosol collector. I use 2 of them in my office to cut down on aerosol production and dust mess. They are reliable have nice filters, good stiffness in the arm. A . Been in service for 30 consecutive days 7 hour days.

Very powerful fume extractor, I work in a small room a d no flux fume goes away.It has a very good filtration too.

How long do the filters last?

Fumeclear

Thank you for your question. For XL-300, it depends on your usage frequency and the specific application, but typical replacement intervals are as follows:

First effect cotton filter core: Every 1-3 months

Glass fiber core: Every 5-6 months

Activated carbon filter core: Every 6-8 months

Would this be suited for soap making? How long can it operate for (uninterrupted)?

Fumeclear

Yes, the XL-300 works well for soap making. Its filtration system efficiently handles the fumes and scents generated during production, ensuring clean and safe air.

Frequently Asked Questions

Is the XL-300 Compatible with My 4060 Laser Engraver?

Yes. The XL-300’s airflow (~265 CFM) is ideal for 40–60W CO₂ lasers like the 4060. It effectively captures smoke and fumes in open or semi-enclosed setups.

Does the FumeclearXL-300 Connect Directly to The Exhaust Port of My Machine?

Yes. Fumeclear XL-300 includes a 90mm inlet, which fits most 4060 laser exhaust hoses. You can also use a reducer or adapter if needed.

How Effective Is It At Removing Odor?

Very effective. The triple-layer activated carbon filters neutralize burnt smells and VOCs during engraving or cutting.

Can I Use the Fumeclear Xl-300 Indoors Without an External Vent?

Yes. The XL-300 laser fume extractor is CE-certified for indoor air return. It filters out harmful particles and gases before releasing clean air.

Does the XL-300 Have Variable Speed Control?

Yes. The airflow can be adjusted in 10 levels, helping you balance suction strength with noise and material type.

How Often Do I Need to Replace the Filters?

Pre-filter: every 2–4 weeks
HEPA/medium: every 1–2 months
Carbon filter: every 3–6 months
Filter life depends on usage intensity and materials processed.

Where can I buy replacement filters or other accessories for XL-300

Replacement filters and accessories are available directly on our website with stable long-term stock support. We offer both individual filter layers and complete filter sets for flexible replacement options, and bulk orders are also eligible for discounts.
Popular Accessories：

XL-300 replacement filters
XL-300 Hose(100mm extendable to 5m)

Can I Move the XL-300 Around Easily?

Yes. XL-300 fume extraction system has smooth caster wheels with brakes, making it easy to reposition and lock in place.

Does it Have Variable Speed Control?

Yes. The airflow can be adjusted in 10 levels, helping you balance suction strength with noise and material type.

How do I use the control panel buttons and functions?

Our user manual is currently being upgraded. In the meantime, you can refer to this blog for detailed information about the control panel buttons and their functions.
