Industrielle Laser-Absauganlage XL-700 für starke Rauchentwicklung & VOCs

Very simple. Just replace the filters regularly — no tools required.

Here’s the recommended replacement cycle:

• Pre-filter: every 1–3 months
• PP filter: every 2-4 months
• HEPA filter: every 3–4 months
• Activated carbon filters: every 6–12 months


All filters are easy to access and swap out. Designed for quick maintenance and minimal downtime.

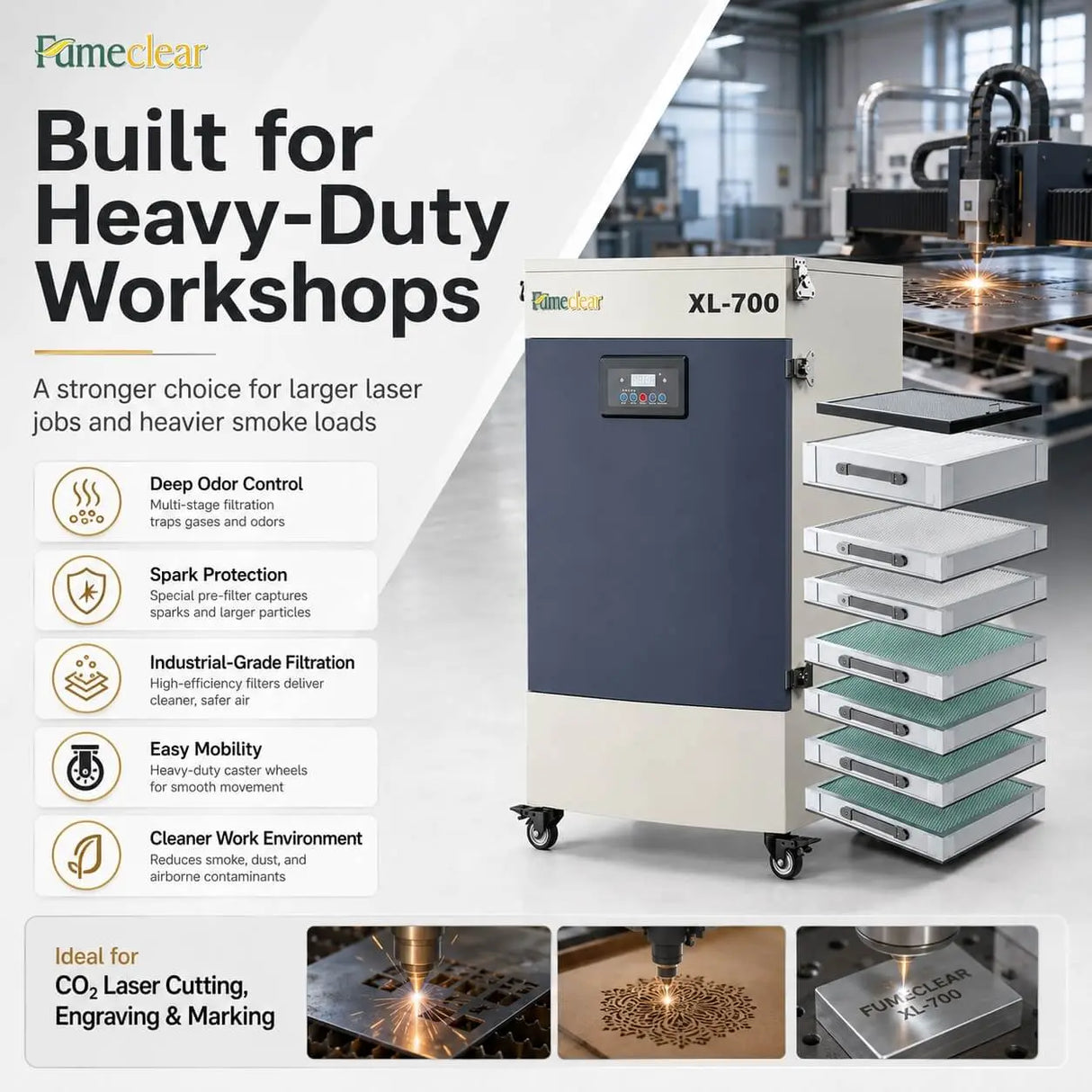

The FumeClear® XL-700 uses an 8-layer industrial-grade filtration system arranged as follows (from outside to inside / upstream to downstream):

1. Stainless-steel spark/mesh screen – blocks sparks & large debris

2. Pre-filter cartridge (100 mm) – captures large dust and chips

3. PP filter – traps oil mist and chemical aerosols before they reach the fine filters, extending service life

4. Glass-fiber high-efficiency (HEPA-grade) filter – 50 mm – intercepts fine PM2.5 particulates

   5–8) Four 50 mm activated carbon filter cartridges – high-capacity adsorption of VOCs and odors


This multi-stage setup enables 99.97% fine-particle removal and high-efficiency deodorization for heavy laser/welding/DTF scenarios.

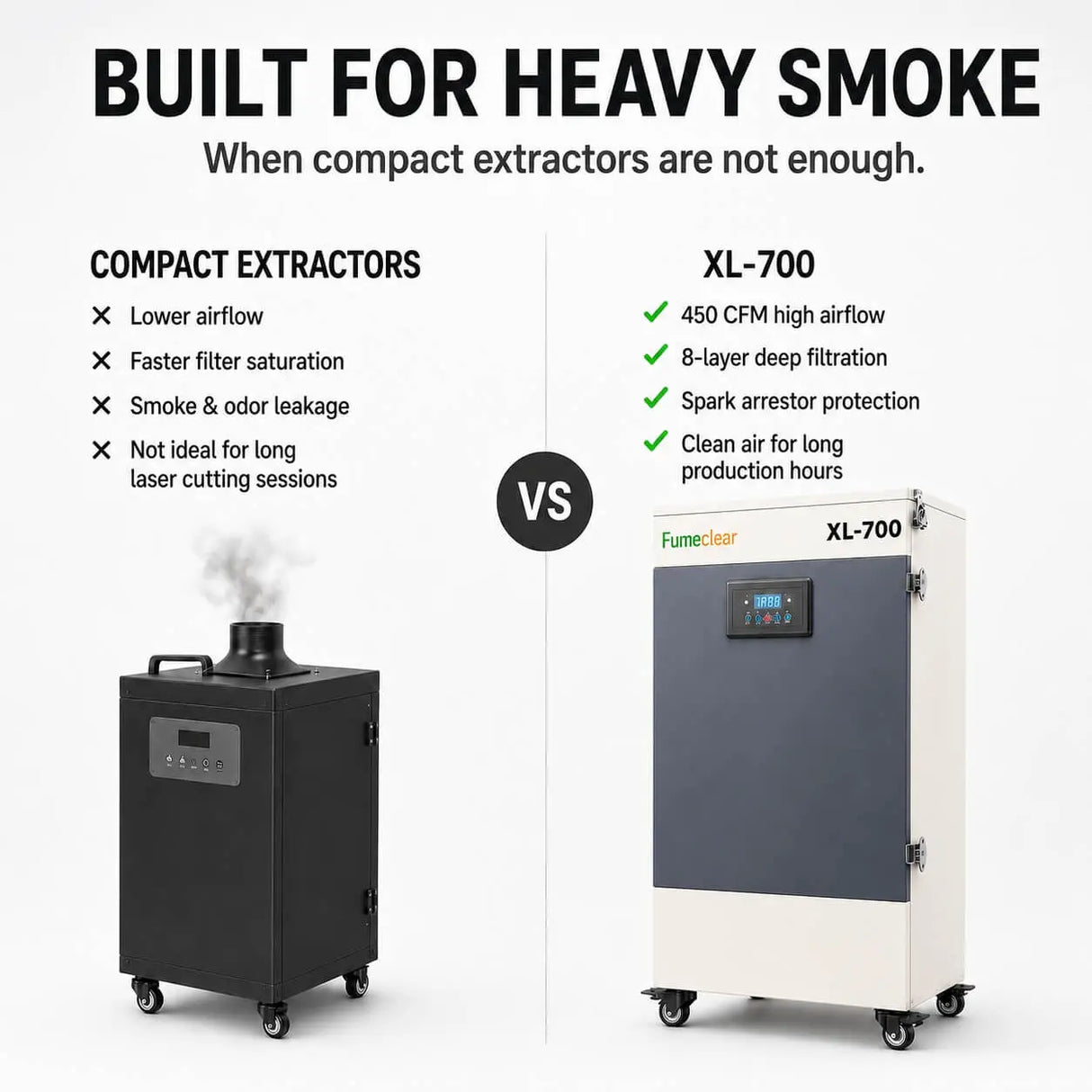

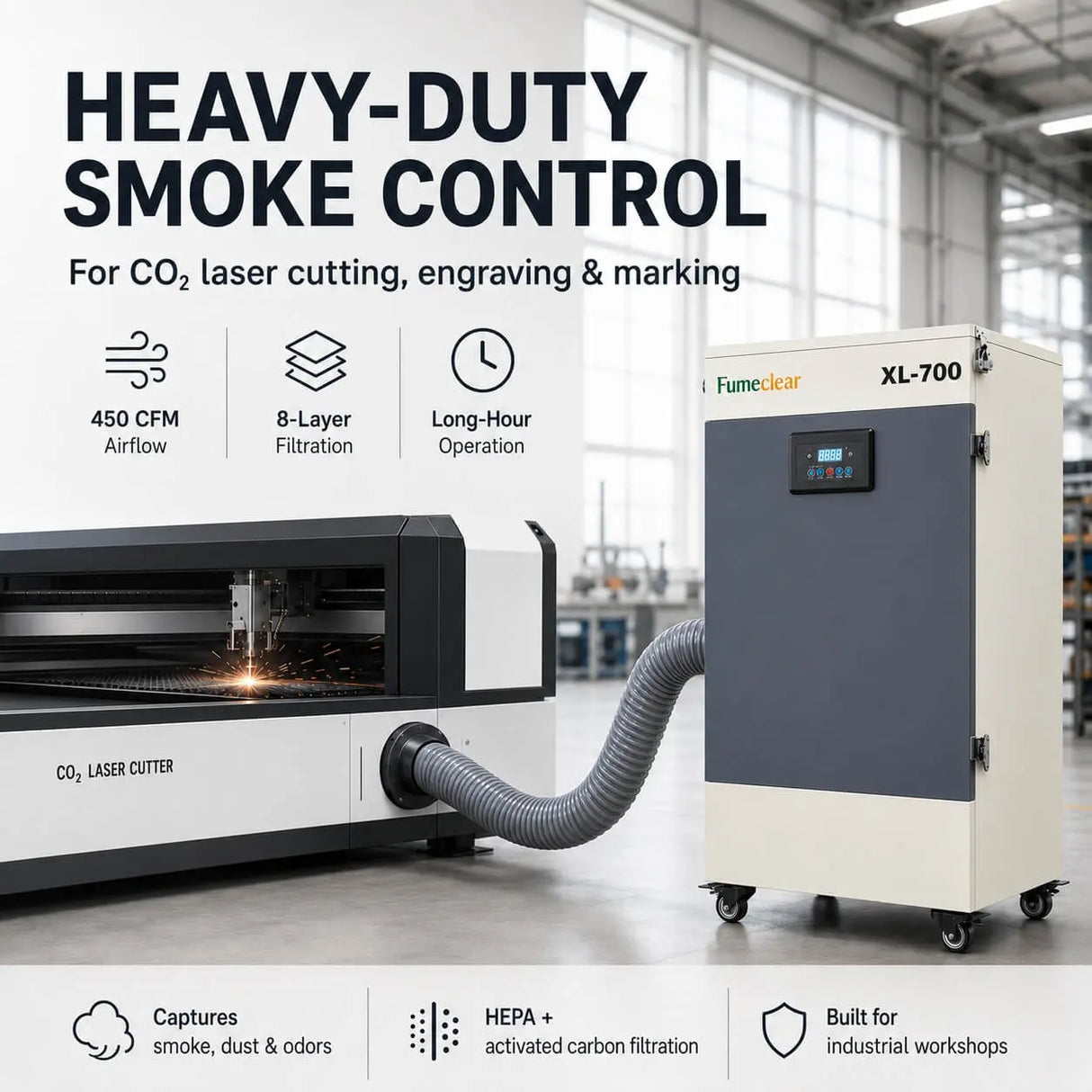

The Fumeclear® XL-700 has an airflow capacity of 450 CFM, making it highly effective for large-scale applications.

It runs at around 63 decibels, which is about as loud as a normal conversation.

You can comfortably use it in workshops or production areas without disturbing your team.

The Fumeclear® XL-700 offers more powerful performance and a higher CFM compared to the XL-500, making it more suitable for larger spaces and higher-volume applications.
See more comparisons in our XL series product comparison

The Fumeclear® XL-700 is a versatile industrial fume extractor designed to handle various types of fumes, including those from laser cutting and engraving machines. For machines ranging from 50W to 2000W, the XL-700 is highly suitable due to its high airflow capacity (700 CFM), which allows it to effectively extract fumes from both lower and higher-powered laser machines.

As for the hose length, the XL-700 can support hoses up to 10 meters, making it compatible with your setup requirements. It’s ideal for machines like Omtech, Epilog Fusion, Thunder Laser Nova 35, and similar models.

Yes, the XL-700 is suitable for a wide range of applications, including:

NDT booths: The XL-700 can effectively extract solvent fumes, like those from dye pens, as it is designed for industrial environments with high volumes of contaminants.

Soldering iron and tin smoke: Its powerful filtration system is well-suited for removing fumes from soldering operations.

Welding smoke: The XL-700 is built to handle fumes from welding operations, whether from laser welding or traditional welding processes. It provides excellent filtration for heavy smoke, fumes, and odors, maintaining a clean workspace.

Jewelry studios: It is effective at managing fine dust and fumes produced in jewelry workshops.

Furniture workshops (paint fumes & woodworking dust): The XL-700 excels at capturing both paint fumes and woodworking dust in smaller workshops.

FDM 3D printers: The XL-700 is also highly effective for extracting fumes from FDM 3D printing processes.

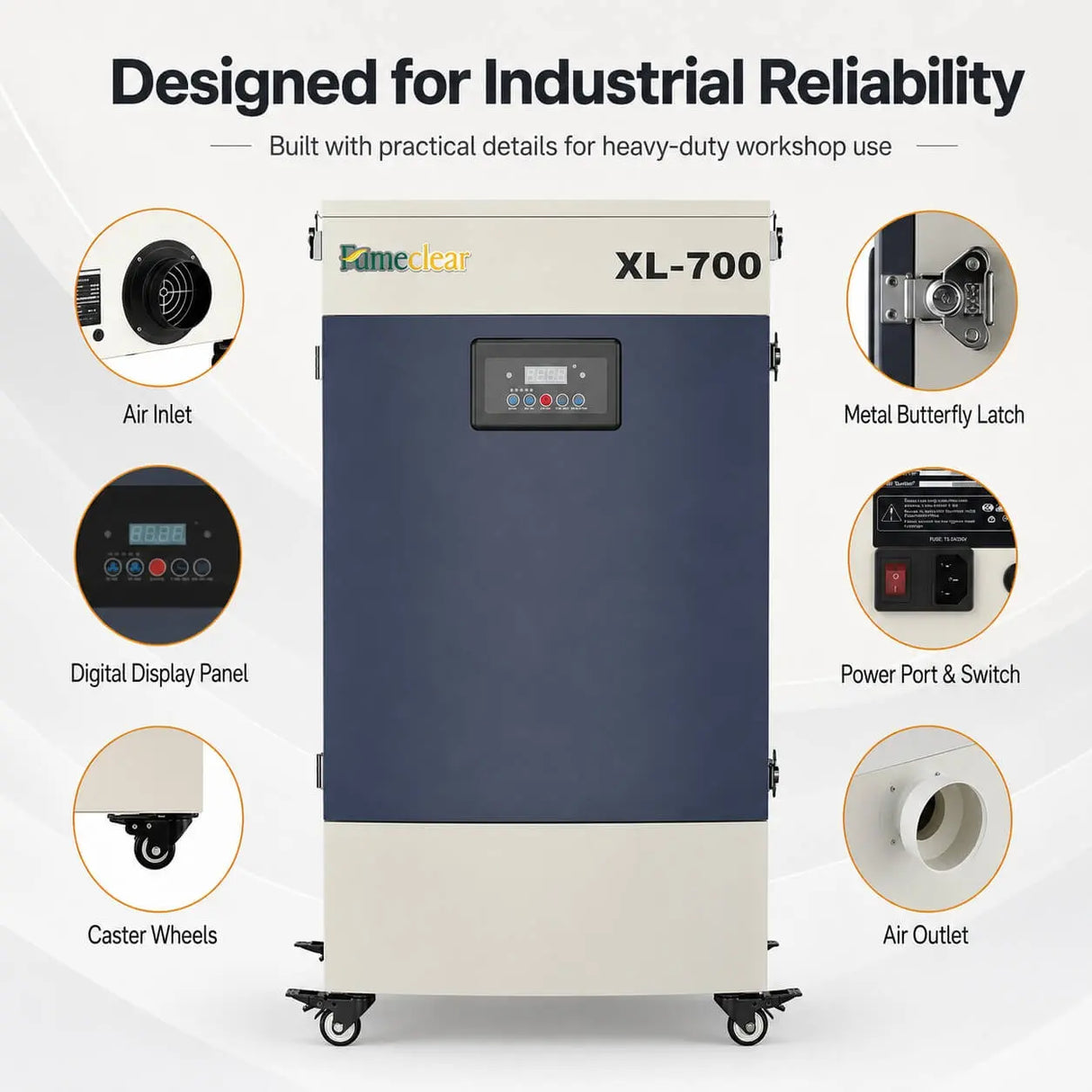

The XL-700 is designed for industrial use and is capable of handling CO₂ lasers, fiber lasers, and laser welding systems up to 150W, supporting 75–90mm inlets for connecting exhaust systems. It provides strong suction to manage heavy smoke, fumes, and odors, making it a versatile and efficient solution for these diverse applications.

The Fumeclear® XL-700 has the following electrical specifications:

Power: 700W (for the motor and fan).

Voltage & Plug Type: These depend on the delivery region.

Make sure to confirm the correct voltage and plug type based on your location when purchasing the unit.

Yes, the XL-700 is equipped with advanced filtration systems, including high-efficiency particulate air (HEPA) filters and activated carbon filters. These filters are effective in capturing both particulates and chemical fumes, including those generated by Thermoplastic Polyurethane (TPU) and rubber composite materials. Therefore, the XL-700 is highly suitable for filtering fumes produced while cutting x-ray curtains made of these materials.

Yes, the XL-700 can be considered an industrial-level fume extractor capable of handling chemical fumes, including solvent vapors. It is comparable to a portable chemical laboratory extractor, but with a more robust design and greater airflow capacity (700 CFM). Its activated carbon filters are specifically designed to adsorb chemical fumes and vapors, making it suitable for environments where solvent fumes are a concern.
