Fumeclear XL-500 Replacement Filters Set

$589.99 USD
Shipping calculated at checkout.
Save
5%
Subscribe to Unlock Extra 5% off for First Order.
Key Features
  • •High-Efficiency Prefiler(5cm/2 in): Captures larger particles like dust and hair, extending the life of downstream filters.
  • •Superior Glass Fiber Core(5cm/2 in): 1Effectively traps fine particles and allergens, ensuring cleaner air.
  • •Enhanced Activated Carbon Filter(5cm/2 in): Absorbs odors and harmful gases, significantly improving indoor air quality.
  • •Comprehensive Air Purification: Multi-layered filtration tackles a wide range of airborne pollutants
  • •Full Set Includes: First Prefilter*1 & Glass Fiber Core*2 & Activated Carbon Filter*4
Type
  • Switch language and currency before ordering (Desktop: top right; Mobile: top-left menu).
  • Voltage (110V/220V) and plug type are matched to your shipping country.
  • Processing Time: 1-2 business days.
  • Shipping Methods: Standard and expedited shipping available.
  • Shipping Locations: U.S. and international.
  • Shipping Rates: Vary depending on location, order size, and shipping method.
  • Order Tracking: Tracking number provided after shipment.
  • Customs & Duties: Customer responsible for import taxes.

For more details, please visit our full shipping policy. View Shipping Policy

  • Eligibility: 30-day return for unused items.
  • Return Process: Contact support with order details.
  • Refund Method: Original payment after inspection.
  • Non-Refundable: Used or damaged items not eligible.

For more details, please refer to our refund policy. View Refund Policy

  • Who We Are: 20+ years fume extraction manufacturer.
  • Applications: Soldering, laser, 3D printing, salons, industry.
  • Mission: Clean and safe working environments.
  • Global Service: Warehouses in U.S., U.K., Germany.

Learn more on our About Us page. About Us

Triple Filtration - Your Health Guardian

Fumeclear xl-500 stainless steel fire protection network

Stainless Steel Fire Protection Network

425 * 335 * 25 mm

Stainless steel fire network interception and prevent the spark from entering, the machine box body produces natural, explosion and other dangers.

Open the upper cover and install the fire-proof filter element.

When the filter element is full of dust, it will clear up the suction force immediately.

The fireproof filter core can be used repeatedly.

* Full Set does not contain it

Fumeclear XL-500 Replacement Filters Set fumeclear fumeclear

First Pre-Filter

405 * 335 * 25 mm

The pre-filter can filter and intercept larger particles.

The inlet of the filter core indicates the arrow down, open the front door and load the initial effect.

The filter is more than 70% of the dust area.

When you can't clean up, please replace the new filter.

*Full Set contains one piece

Fumeclear xl-500 glass fiber high efficiency filter core

Glass Fiber High Efficiency Filter Core

450 * 380 * 50 mm

Glass fiber high efficiency filter core filters and blocks 0.3 micron particles.

The filter air inlet indicates that the arrow is down and placed on the lower level of the PP efficient filter element of the machine.

*Full Set contains two pieces

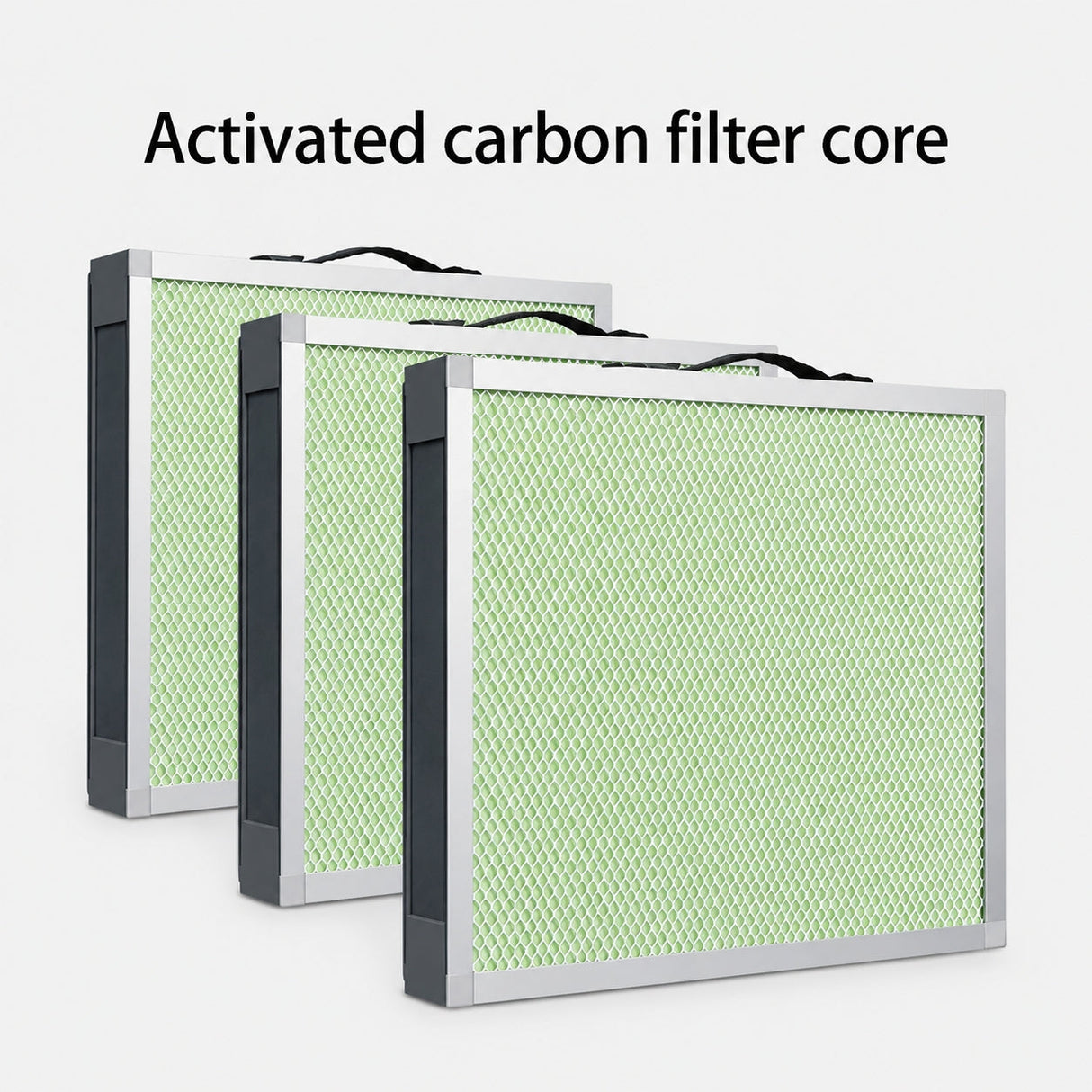

Fumeclear xl-500 activated carbon filter core

Activated Carbon Filter Core

450 * 380 * 50 mm

Activated Carbon Filters adsorb toxic and harmful gases and odors.

The air intake indicator arrow of the filter element is downwards and placed on the lower layer of the dust filter of the machine.

Replace it when the filter core is obviously not effective in removing the odor contained in the smoke.

*Full Set contains four pieces

Maintenance: It is forbidden to install filter cartridges or use inferior filter elements in the market. In this case, the equipment is not within the scope of warranty. Please regularly replace original configuration filter elements and [specify what to fill] in order to avoid causing greater losses. Filter cores should be placed in accordance with standard configuration.

*Note: Changing the location of the filter layer is strictly prohibited. It must be placed in accordance with the arrow directions on it. It is strictly forbidden to touch the fan inlet at the inside with hands.

Filter Type Specification Replacement Time (Machine Works 8 Hours a Day)
Stainless Steel Fire Protection Network 425*335*25mm Does not need replacement (only cleaning required)
First Prefilter 405*335*25mm Replace every 1–2 months
Glass Fiber High Efficiency Filter Core 450*380*50mm Replace every 3–4 months
Activated Carbon Filter Core 450*380*50mm Replace every 6 months
