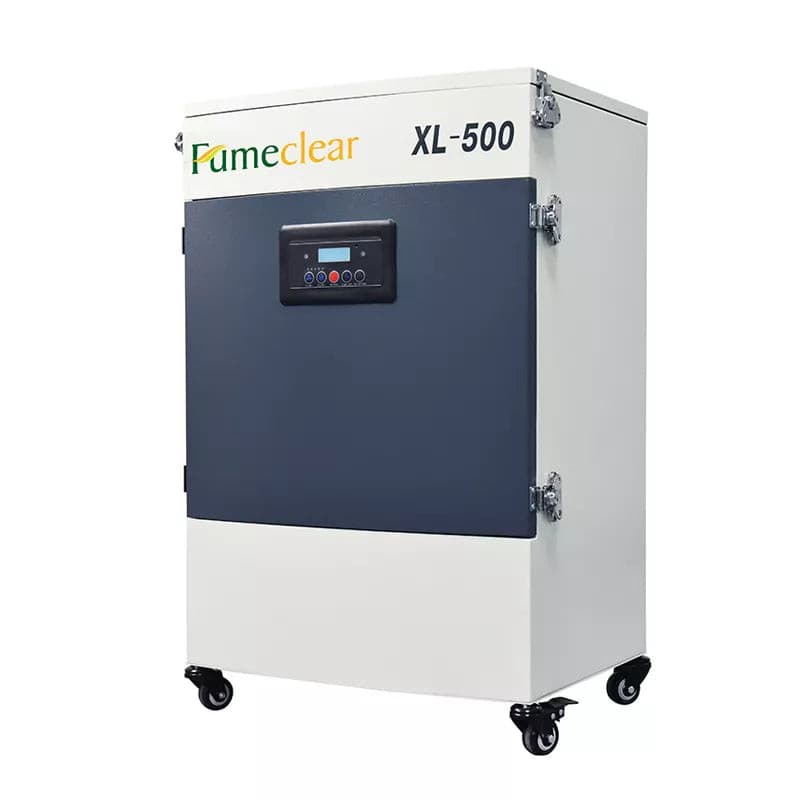

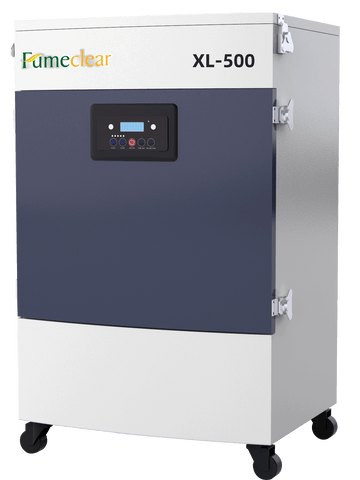

Fumeclear® XL-500 Industrial Fume Extractor for Laser

Fumeclear® XL-500 Fume Extractor Instructions for use

Fumeclear® XL-500 Industrial Fume Extractor for Laser has a variety of configurations to choose from, Fire protection net 415*335 *25mm, Primary filter 450*380*100mm, PP medium efficiency filter 450*380*50mm, Glass fiber filter 450*380*50mm , Activated carbon filter450*380*50mm*4.

Allowing customers to customize equipment to their specific needs. It can be equipped with a range of filters including HEPA, activated carbon and specialty blends to suit different applications.

Application type required. Suitable for large-scale laser processing, cutting, engraving or marking processing.

Fumeclear® XL-500 Industrial Fume Extractor for Laser Features

1. With metal frame structure, it is durable in use.

2. Microcomputer chip control, digital display, remote control available.

3. Filter failure alarm system.

4. Multi-layer filtration and rapid purification.

5. DC brushless motor made it a stable performance and long life.

6. Impeller made of special alloy material, anti-corrosion and larger suction.

7. Dust collection and filtration, odor filtration, fire proof.

8. Equiped with observation window, you can view the service condition at any time.

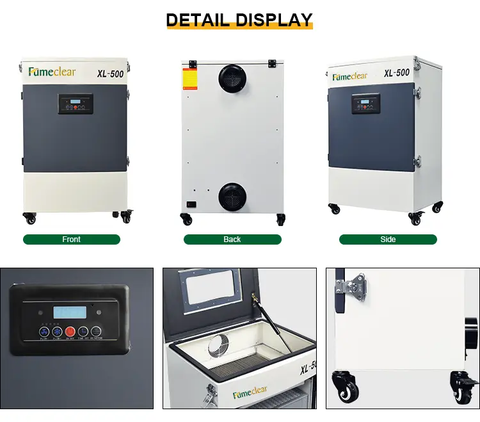

Fumeclear® XL-500 Industrial Fume Extractor Product Size：

Fumeclear® XL-500 Industrial Fume Extractor Specification：

Fumeclear® XL-500 Industrial Fume Extractor List of installed：

Fumeclear® XL-500 Industrial Fume Extractor Installation instruction：

The filter system of the Fumeclear® XL-500 industrial fume extractor consists of:

Our products package with 8 filter

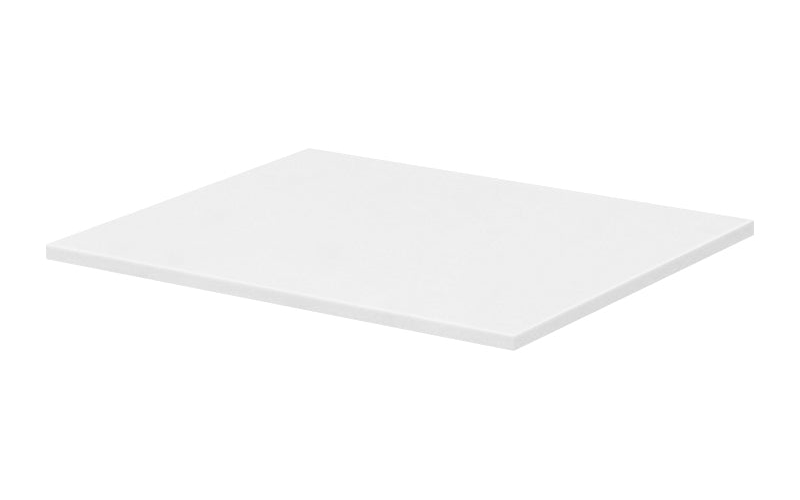

• First Prefilter  【405*335*25mm】

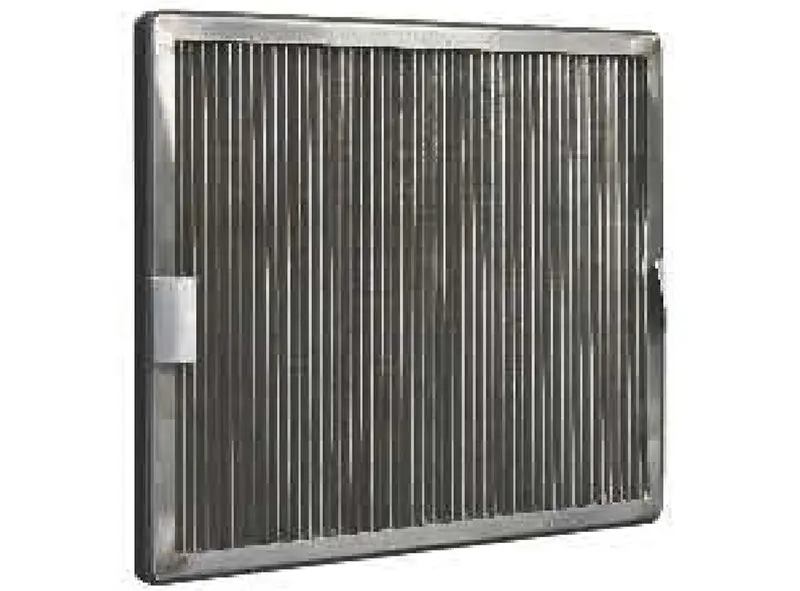

• Stainless steel fire protection network【425*335*25mm】

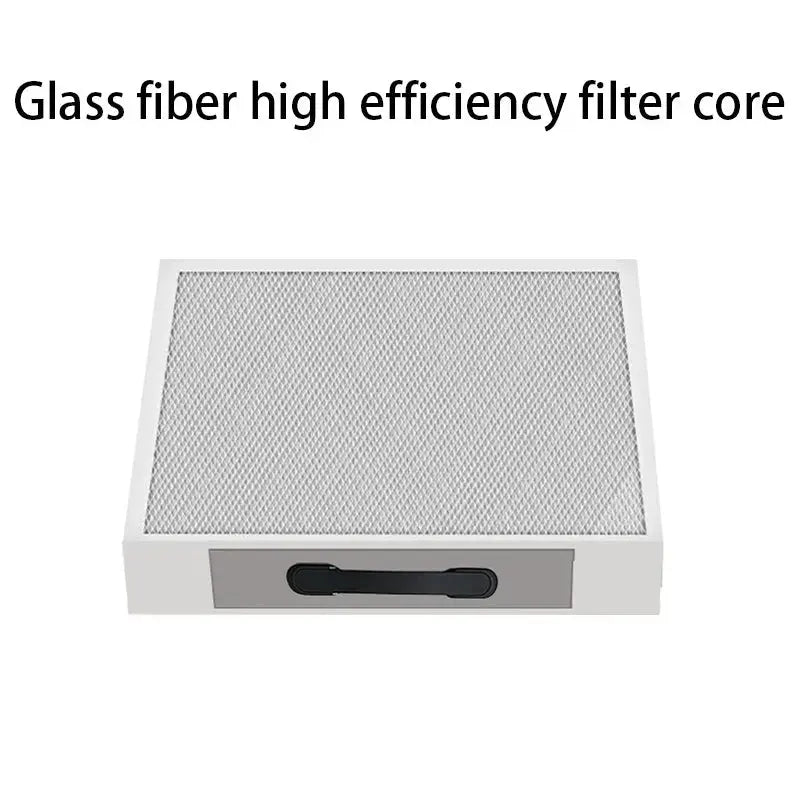

• Glass fiber high efficiency filter core 【450*380*50mm】

• Activated carbon filter core 【450*380*50mm】

Fumeclear® XL-500 Industrial Fume Extractor Filter Use & Maintenance ：

Note: it is forbidden to install filter cartridge or use inferior filter element in the market.inthis case,the equipment is not within the scope ofwarranty.Please regularly replace theoriginal configuration filter element and fill it in order to avoid causing greater losses.

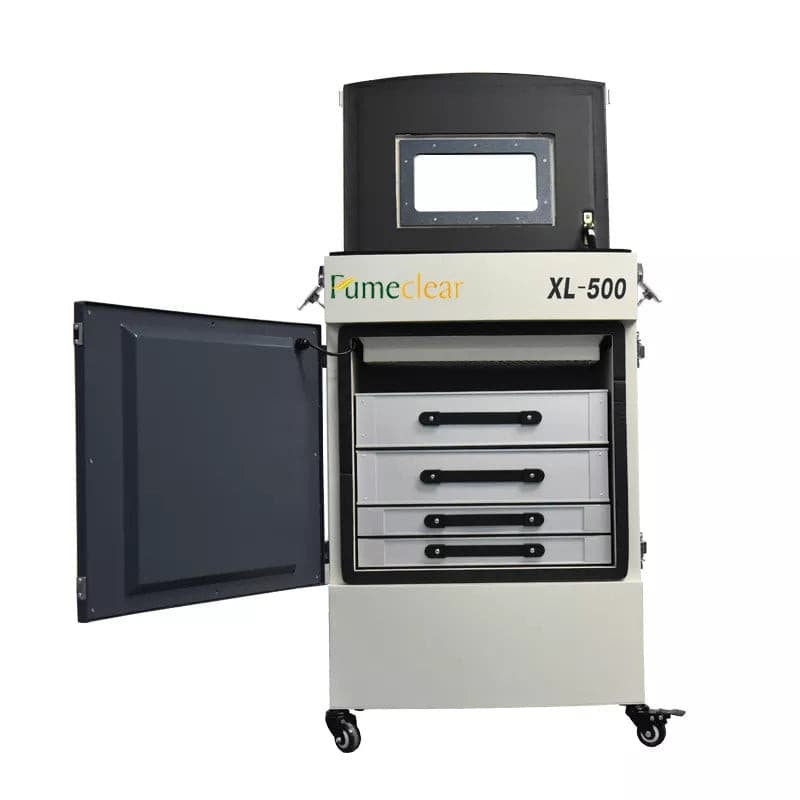

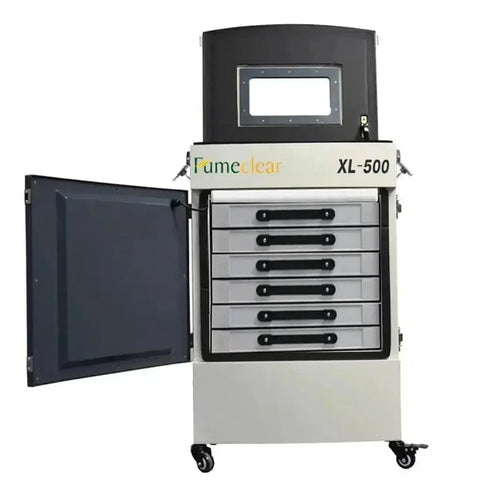

Filter core placement in accordancewith standard configuration
ANote: the location of the filter layer must be strictly prohibitedlt must be placedin accordance with the arrow directions on it.lt is strictly forbidden to touch the faninlet at the inside with hands.

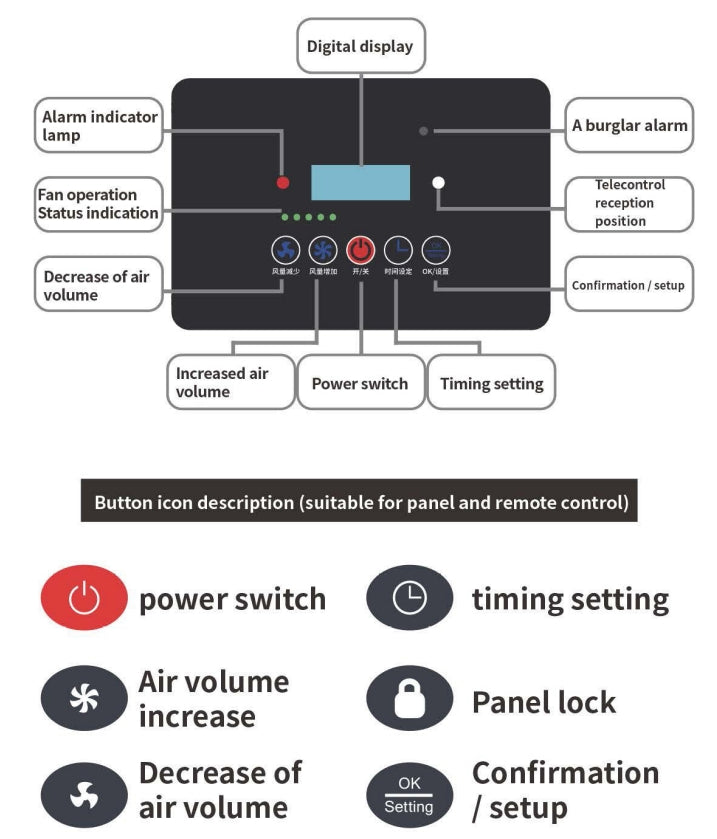

Fumeclear® XL-500 Industrial Fume Extractor 0peration instruction:

Fumeclear® XL-500 Industrial Fume Extractor Packing

• XL - 500 Fume Extractor * 1

• 150MM *3M Air Intake Pipe

• 100MM *5M Exhaust Pipe

• Fireproof protection net * 1

• PP Medium Filter * 1

• Primarry Filter * 1

• Glass Fiber Filter * 1

• Activated Carbon Filter * 4

• Product Manual * 1
