A fume extractor is a device designed to remove harmful airborne contaminants such as smoke, dust, fumes, and odors from a workspace.

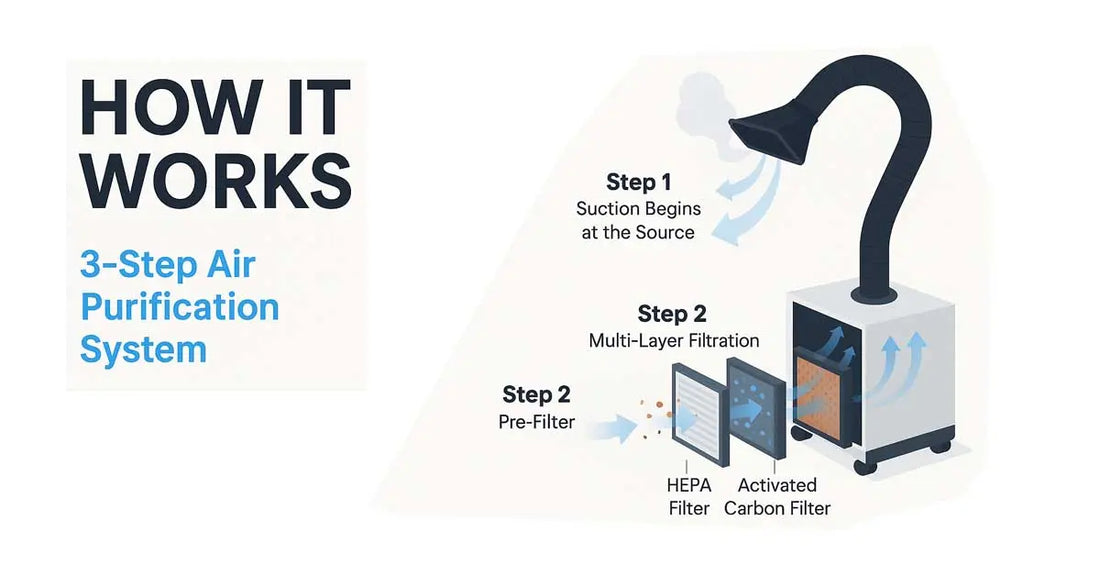

Core Components

A fume extractor typically consists of three key systems: the Airflow System, the Filtration System, and the Fume Duct.

The Airflow System pulls in contaminated air using a powerful fan.

The Filtration System cleans the air by removing harmful particles and gases.

The Fume Duct guides the polluted air into the extractor and directs the clean air back out.

How to Choose the best Fume Extractor

To choose the best fume extractor, you need to consider the following key points:

1️⃣ Airflow Capacity (CFM / m³/h)

• Soldering: 100–200 CFM
• Laser Engraving (<60W): 200–300 CFM
• Laser Cutting (>80W): 400–750+ CFM

Look for models with adjustable airflow settings to adapt to different tasks.

2️⃣ Filtration System

• Pre-filter: Captures large dust and particles
• HEPA filter: Removes 99.97% of fine particles (≥0.3 microns)
• Activated Carbon filter: Absorbs odors and harmful gases (VOCs)

For specific materials (like PVC), additional acid or gas neutralization layers may be needed.

3️⃣ Noise Level

• Important for offices, labs, or salons
• Look for units under 60 dB for quieter operation
• Check noise level at both max power and 1-meter distance

4️⃣ Portability & Size

• Is your workspace limited in space?
• Do you need to move it between stations?
• Choose a compact unit with wheels or handles for easy mobility

5️⃣ Fume Duct or Extraction Arm

• Easy to position
• Compatible with your machine's exhaust port (75mm, 90mm, etc.)
• Optionally dual-port if multiple machines are used

6️⃣ User-Friendly Controls

• Remote control or panel interface
• Filter replacement reminders
• Adjustable fan speed (5-speed, 10-speed, or stepless control)

7️⃣ Certifications

Especially important for professional or international use:

• CE, FCC, RoHS, UL, UKCA, etc.

8️⃣ Maintenance & Filter Replacement

• Are the filters easy to access and replace?
• How long does each filter last?
• Is technical support available?

9️⃣ Price vs. Value

• Focus on total performance, not just price
• Compare specs between brands (airflow, filter quality, noise, usability)

🧠 In Short

The best fume extractor is the one that meets your real needs: powerful enough, clean enough, quiet enough — and easy to maintain.
