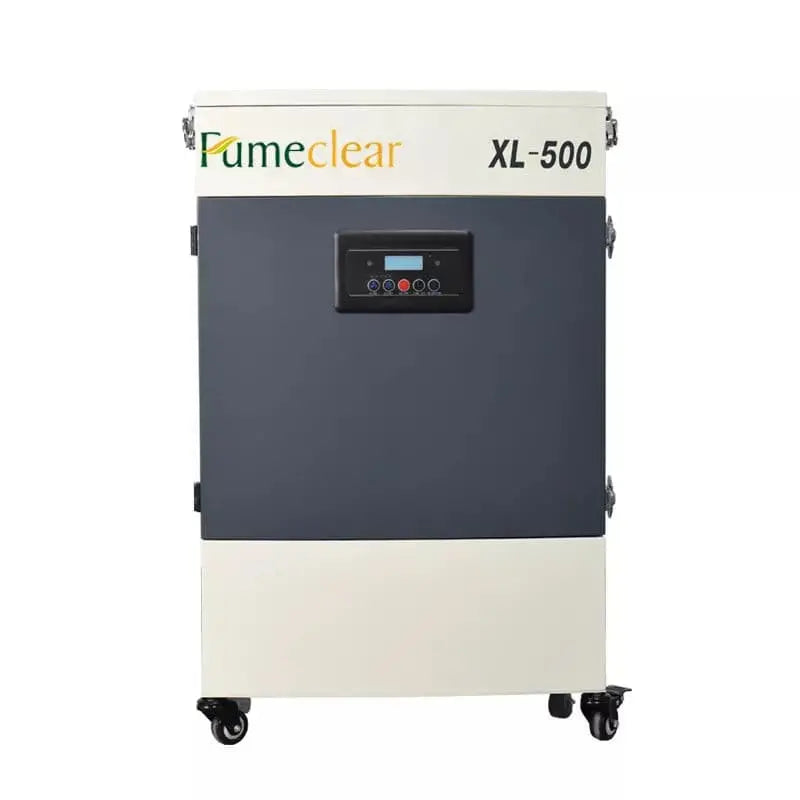

Fumeclear® XL-500 Industrial Fume Extractor for Laser

$2,199.00 USD $2,999.00
Shipping calculated at checkout.
Save
5%
Subscribe to Unlock Extra 5% off for First Order.
Key Features
  • •Durable metal frame structure for long-term industrial use
  • •Microcomputer chip control with digital display and remote control functionality
  • •High-performance impeller made of special alloy for anti-corrosion and stronger suction
  • •Multi-function filtration system for dust, odor removal, and fire protection
  • •Equipped with an observation window for real-time operating status monitoring
  • •Suitable for Large-Scale Laser Processing, Laser Cutting, Laser Engraving, Laser Marking Processing
  • Switch language and currency before ordering (Desktop: top right; Mobile: top-left menu).
  • Voltage (110V/220V) and plug type are matched to your shipping country.
  • Processing Time: 1-2 business days.
  • Shipping Methods: Standard and expedited shipping available.
  • Shipping Locations: U.S. and international.
  • Shipping Rates: Vary depending on location, order size, and shipping method.
  • Order Tracking: Tracking number provided after shipment.
  • Customs & Duties: Customer responsible for import taxes.

For more details, please visit our full shipping policy. View Shipping Policy

  • Eligibility: 30-day return for unused items.
  • Return Process: Contact support with order details.
  • Refund Method: Original payment after inspection.
  • Non-Refundable: Used or damaged items not eligible.

For more details, please refer to our refund policy. View Refund Policy

  • Who We Are: 20+ years fume extraction manufacturer.
  • Applications: Soldering, laser, 3D printing, salons, industry.
  • Mission: Clean and safe working environments.
  • Global Service: Warehouses in U.S., U.K., Germany.

Learn more on our About Us page. About Us

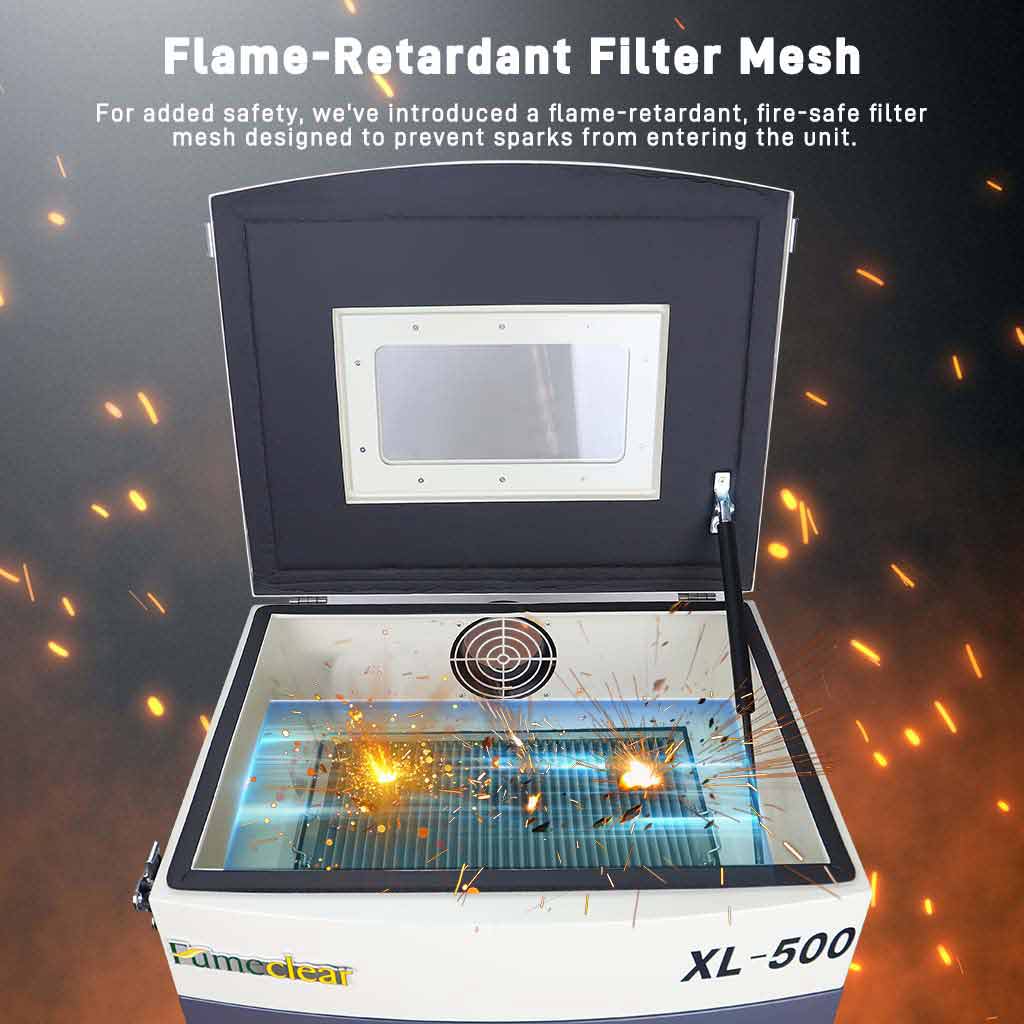

Fumeclear xl-500 stainless steel fire protection network

Stainless Steel Fire Protection Network

425 * 335 * 25 mm

Stainless steel fire network interception and prevent the spark from entering, the machine box body produces natural, explosion and other dangers.

Open the upper cover and install the fire-proof filter element.

When the filter element is full of dust, it will clear up the suction force immediately.

The fireproof filter core can be used repeatedly.

xl-500 duan layer for superior filtration

25mm First Pre-Filter

405 * 335 * 25 mm

The XL-500 pre-filter features a unique two-layer design for superior filtration, with a lighter-density top layer and a denser bottom layer tightly bonded together. With an extra-thick 25mm structure—significantly thicker than the typical 8–10mm found in smaller units—it delivers enhanced dust-holding capacity and longer service life. When installing, make sure the denser layer is positioned at the bottom for optimal performance.

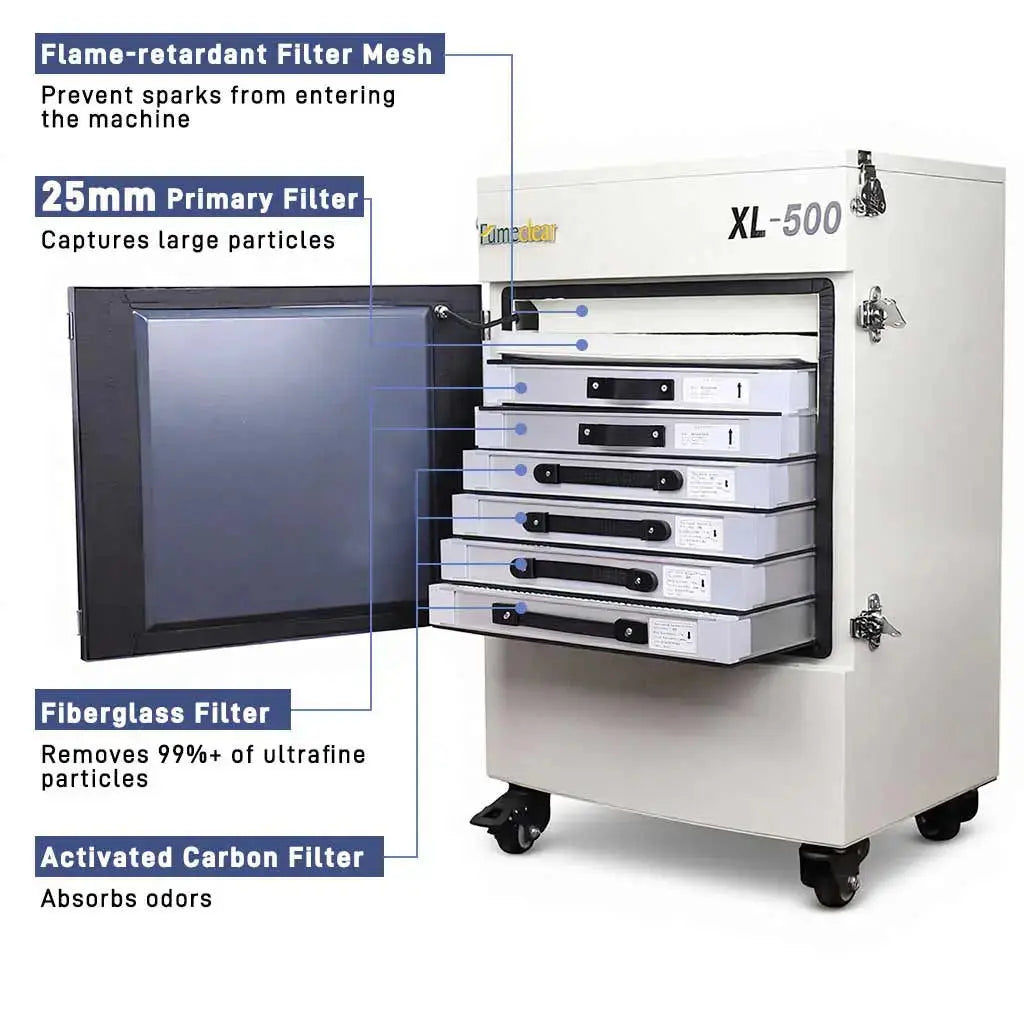

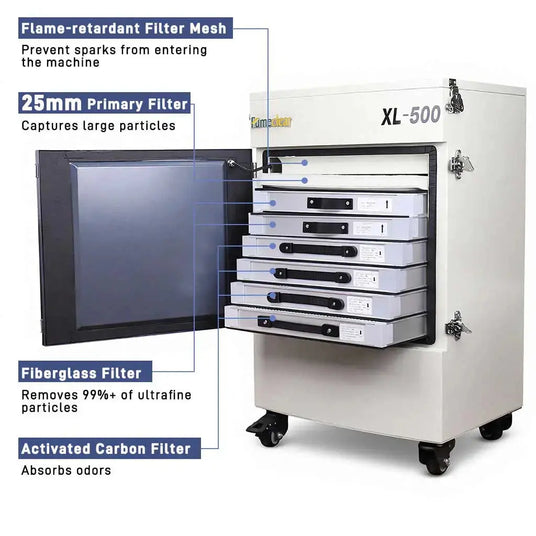

Fumeclear XL-500 industrial fume extractor with 8-layer filtration system including flame-retardant mesh, 25mm primary filter, fiberglass and activated carbon filters

8-Layer High-Efficiency Filtration

Featuring an advanced 8-layer filtration system, including 1 flame-retardant layer, 1 pre-filter, 2 HEPA fiberglass filter layers, and 4 activated carbon layers, this system removes 99.97% of fine particles and odors. Both the HEPA and activated carbon cores feature an extra-thick 50mm design, significantly enhancing filtration efficiency, odor absorption, and overall lifespan compared to standard filters.

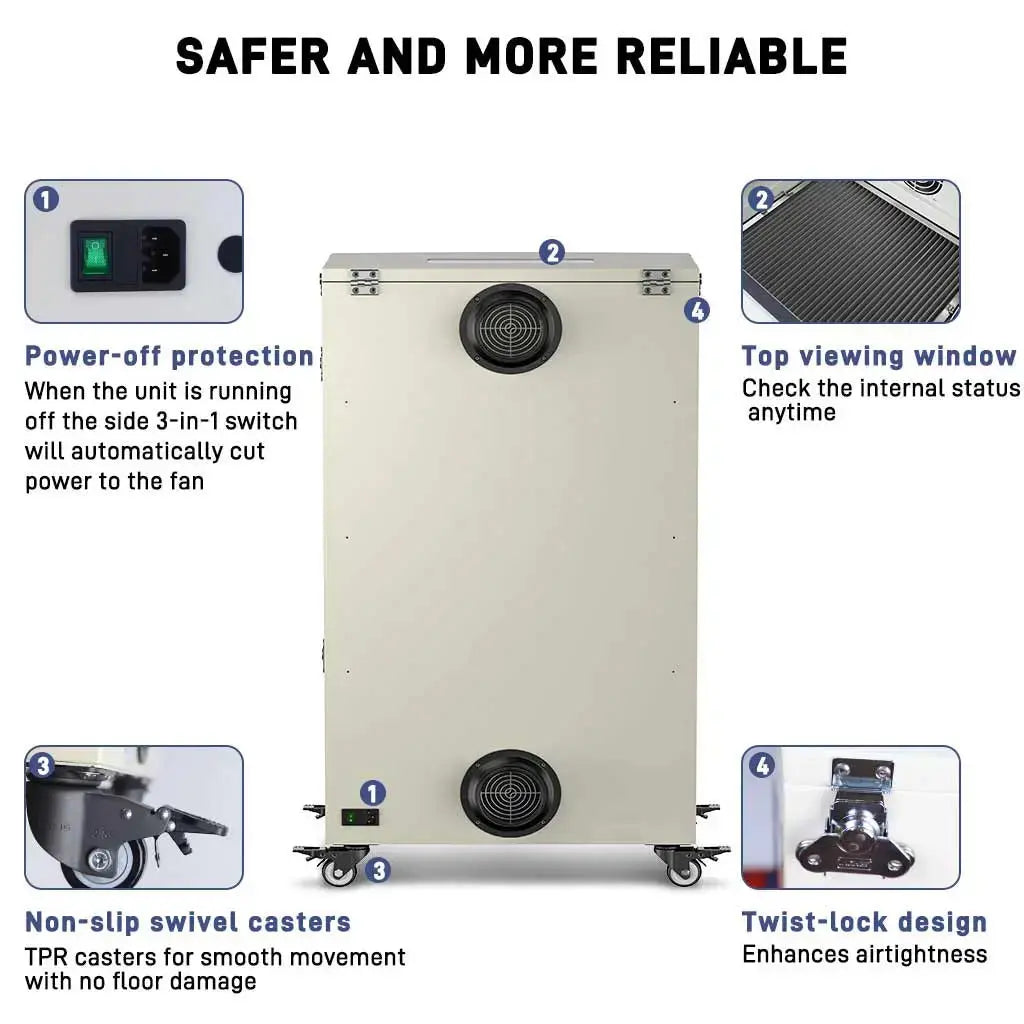

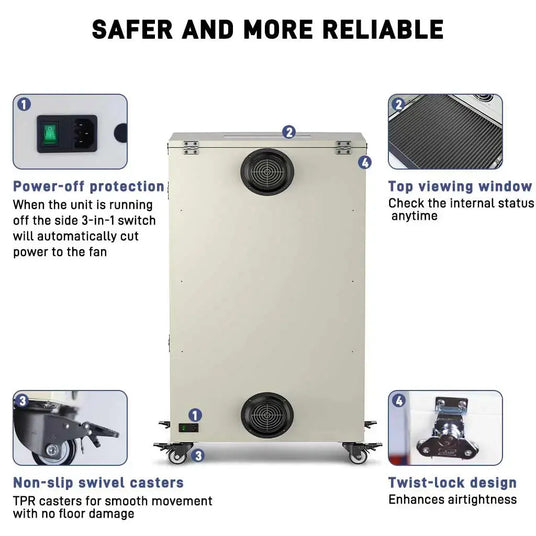

Fumeclear XL-500 industrial fume extractor safer and more reliable features: power-off protection, non-slip casters, twist-lock design and top viewing window

Safer and More Reliable Design

The Fumeclear XL-500 industrial fume extractor is built with safety and reliability in mind.
Featuring power-off protection, non-slip swivel casters, twist-lock airtight design, and a convenient top viewing window, it delivers peace of mind during long hours of laser engraving, cutting, and soldering.

Maintenance Instructions & Notes

  • Do not install third-party or inferior filter elements. Using non-original filters will void the equipment warranty.
  • Regularly replace original filter elements to prevent potential damage or performance issues.
  • Always install filter cores according to the standard configuration. Do not change the order or placement of filter layers. Follow the arrows and markings on each filter.
  • Do not touch the fan inlet or internal components with your hands.

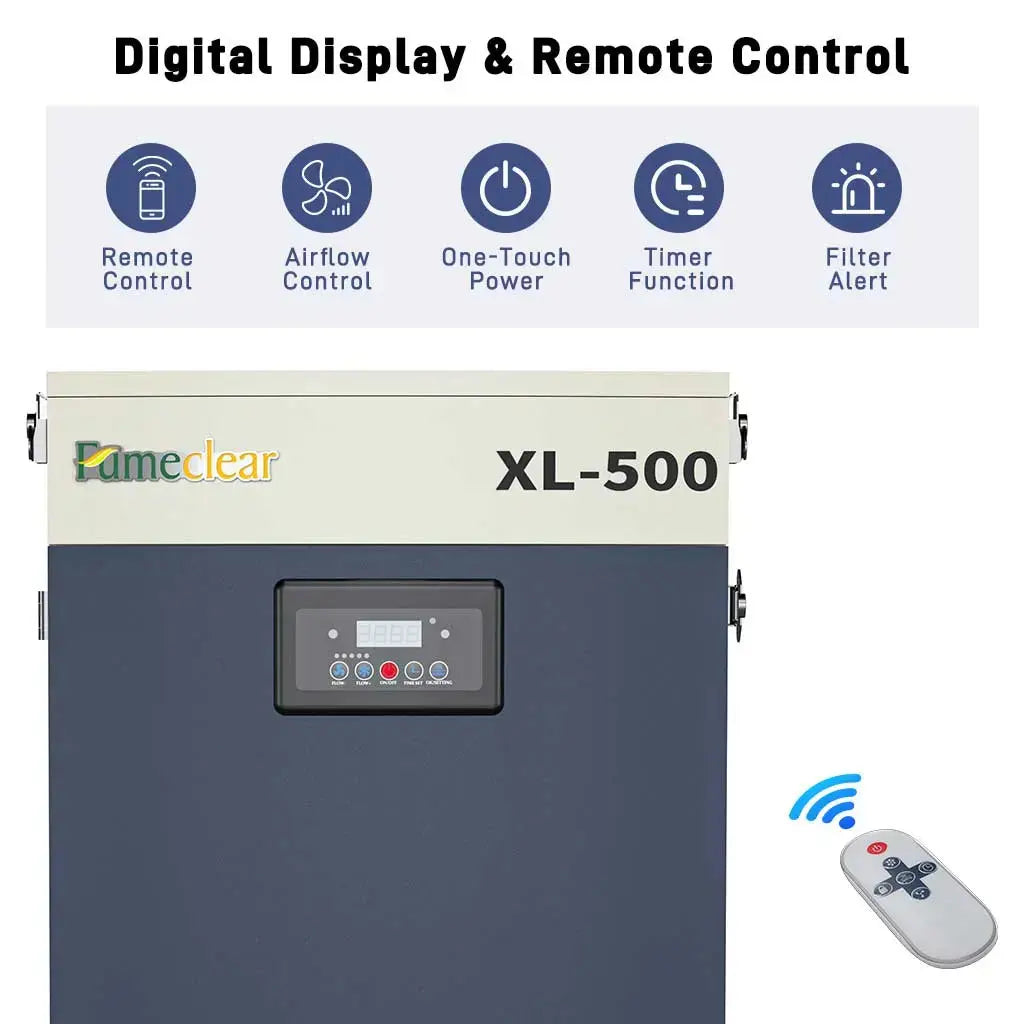

Fumeclear XL-500 industrial fume extractor with digital display, remote control, airflow control, timer function and filter alert

Easy-to-Use Control Panel for Precise Airflow Management

The XL-500 is equipped with a clear digital display and an intuitive control panel designed for efficient and precise operation. Users can easily adjust air volume, set operating timers, and monitor system status at a glance. Visual indicators provide real-time feedback on fan operation and alarms, while the simple button layout ensures quick setup and reliable performance in demanding industrial environments.

Product Specifications
Filter Stages Fireproof protection net * 1 & First pre-filter & Glass fiber filter core * 2 & Activated carbon filter core * 4
Flow 412 CFM
Fumeclear Power 450 W
Fumeclear Negative Pressure 3000 Pa
Noise <60 dB
Air Inlet Interface Φ150mm * 3M
Dimensions (L×W×H) 21.65 × 17.32 × 34.84 inches
Weight 132.28 lbs

Installation Instruction

  • Demonstration off Fumeclear XL-series connect with a bamboo hose

    Using the Flexible Bamboo-Style Hose

    Connect the machine with the flexible bamboo-style hose. Position the hose near your workbench or the source of fumes to efficiently capture smoke and particles.

  • Demonstration off Fumeclear XL-series connect with machine a hose

    Direct Connection to Equipment Exhaust

    Connect the machine directly to the exhaust port of your laser device or other equipment using the hose. This ensures a direct path for smoke and fumes to be extracted.

Frequently Asked Questions

What is the difference between the Fumeclear® XL-500 and XL-700 models?

The Fumeclear® XL-700 offers more powerful performance and a higher CFM compared to the XL-500, making it more suitable for larger spaces and higher-volume applications.
See more comparisons

What voltage is required for the XL-500?

The Fumeclear® XL-500 requires 110V power with a standard USA plug type.

Can the Fumeclear® XL-500 handle specific machines and workspaces, including laser cutters, wood restoration, welding, and metal cutting?

Yes, the XL-500 is compatible with a wide range of machines and applications, including laser cutters, engravers (such as Xtool P3, Epilog 24x24, OneLaser Hydra 9, Thunderlaser NOVA 35, 85-watt CO2 laser, MOPA fiber laser, and other laser systems), wood restoration projects, welding bays, and metal cutting. It effectively captures smoke, fumes, and particulates, ensuring clean and safe air in industrial and creative environments.

Frequently asked question

Provide an answer to the question here, with as much detail as possible to help your customers.

What is the airflow capacity of the Fumeclear® XL-500, and does it meet the requirements for high static pressure environments?

The Fumeclear® XL-500 has an airflow capacity of 412 CFM and operates at a negative pressure of 3000 Pa, making it suitable for environments with high static pressure.

What is the noise level during operation?

The XL-500 operates at a noise level of less than 60 dB, ensuring a quieter and more comfortable work environment.

How many filters does the XL-500 have?

The FumeClear® XL-500 is built with an 8-layer professional filtration system, delivering high efficiency and durability for laser cutting, engraving, and welding environments.

Filtration structure (from outer to inner):
1️⃣ Fireproof Protection Net – Prevents sparks and large particles from entering the filter chamber.
2️⃣ Primary Filter (Pre-filter Core) – Captures large dust and visible smoke, extending the lifespan of downstream filters.
3️⃣–4️⃣ Dual Glass-Fiber High-Efficiency Filters (HEPA-grade) – Two layers of high-efficiency glass fiber media that remove fine particulates such as PM2.5 and smoke dust.
5️⃣–8️⃣ Four 50 mm Activated Carbon Filters – High-capacity odor and VOC absorption layer that eliminates toxic gases, ensuring clean, safe air output.

This 8-layer configuration achieves 99.97% purification efficiency, combining particle removal, gas adsorption, and fire protection — ideal for laser engraving, welding, and 3D printing applications.

💡 Compared to single-stage HEPA systems, the XL-500’s dual glass-fiber design and four carbon layers provide deeper filtration and longer service life.
